Måleinstrumenter

DATS V3 en forbedring til et allerede fantastisk måleinstrument DATS V3 som giver mulighed for mange målinger for øget præcision i dit design, her er hvad du kan med den: - Måle thiele-small data på en enhed - Impendans måling af et komplet højttaler design - Verificere at et delefilter er rigitgt forbundet - Måle spoler, kondensatorer og modstande Version V3 er lavet meget mere professionel med banan bøsninger så du kan skifte prøve pinde samt du kan forbinde et ganske almindeligt bananstik med et krokodille næb. Kalibrerings modstanden er bygget ind i kassen og er de 2 metal stænger på hver side af banan bøsningerne.   Klik her for at se quick guiden til installation Klik her for at hente dens white paper   Hent softwaren her Product Description When designing the DATS V3 measurement device, Dayton Audio took everything customers love about the DATS V2 and improved upon the accuracy, capability, reliability, convenience, and flexibility. Any engineer knows that valid and accurate data is crucial to great results. DATS (Dayton Audio Test System) V3 is the essential tool in any speaker designers or audio engineers toolbox, providing accurate, precise measurement data for any audio transducer or loudspeaker system. Save yourself time, money, and trial-and-error frustration by using DATS V3 to measure loudspeaker drivers, crossover networks, and complete audio systems! DATS V3 is a unique, multipurpose test system that works with your PC and full-featured test software to measure the impedance response of a speaker driver and derive a complete set of Thiele/Small parameters that describe its operation. Its as easy as connecting a driver and starting the test! The DATS V3 measurement module provides the electrical stimulus to the driver, measures the drivers impedance on the fly, and then creates a high-resolution graph (30,000 data points!) with no additional hardware required. Whats better about Version 3? From the outside, the DATS V3 has a completely updated look and feel. The extruded aluminum housing makes DATS V3 durable enough to throw into a toolbox without worrying about damage. In addition, optional mounting brackets give you the option to mount the DATS V3 under a desk or test bench to save space. No more searching for a calibration resistor, it is now integrated into the case, just clip the test leads onto the pins on the front of the housing and run the calibration. Also, the test leads have been upgraded to removable insulated banana plug test leads, giving you the ability to use your favorite test leads and easily replace damaged test leads (test leads are included). Finally, we have added a USB-B jack rather than an integrated USB cable (USB A to B cable included). This allows the cable to be quickly swapped if there is any damage, or if a different length is preferred. The improvements continue on to the inside of the DATS V3. The internals have been completely redesigned and improved to deliver better accuracy and more power. With increased output power, the DATS V3 allows you to take measurements at a higher level to minimize the chance that a high noise floor or vibration could affect measurement results. Dayton Audio has also upgraded many of the internal components with tighter tolerances to minimize the margin of error that is caused by a components value variance. Even the calibration resistor has been upgraded to 0.1% tolerance. DATS V3 software is the true power of DATS. The included software not only measures impedance and parameters of speaker drivers with incredible accuracy, but the addition of the DATS Linearity Test gives you the ability to observe changes in parameters with differing drive levels. The Linearity Test automatically performs multiple sweeps of the driver at increasing (or decreasing) levels while saving each test result to memory making it easy to recall and compare the results. As always, the DATS V3 still has the capability to measure the true value of inductors, capacitors, and resistors, and it also works as a signal generator and scope to let you monitor small electrical signals (line-level only). Even more updates are planned to further set DATS V3 apart from the competition. DATS V3 provides the following unique advantages: • Rugged aluminum housing with detachable test leads and built-in precision calibration resistor• Tighter tolerances on internal components for more precise measurements• Linearity test allows you to easily observe shifting parameters with different drive levels•Increased output capability for greater separation from the noise floor for more accurate measurements•Optional under desk mounting brackets to save desk space•Ultra-linear impedance response measurement for loudspeaker drivers and complete systems•Accurate measurement of loudspeaker electromechanical parameters (Fs, Qts, Vas, and many more)•Measurement of advanced Wright Model parameters (Kr, Xr, Ki, Xi) for precision simulations•Precise, high-resolution impedance response measurements with 30,000 data points (1 Hz to 20,000 Hz)•Save and compare up to 20 impedance graphs simultaneously within one test file•Integrated quality control feature set provides pass/fail parameter measurement (QC Pack)•Sensitive rub and buzz detection functionality reveals hidden flaws in individual drivers (QC Pack)•Software signal generator with selectable waveform, frequency, and amplitude•Generates sine, square, triangle, saw tooth, impulse, pink noise, and log sweeps•Oscilloscope software mode with dual traces, plus adjustable time and amplitude scales•Oscilloscope and generator modes are compatible with other audio interfaces•Quality test interface hardware assembled using precision SMT components and automation•High-quality alligator clip leads minimize contact resistance for improved consistency•Includes method for calculating Vas from specified Mmd•Faster-than-ever hardware startup time virtually eliminates warm-up/cool-down A solution like no other DATS V3 is faster, more elegant, more versatile, and easier to use than any other speaker test & measurement device. Get ready for your designs to make a quantum leap, thanks to better data! DATS V3 dimensions: 1" H x 2-1/2" W x 4-1/8" D DATS V3 Software Features Impedance Measurements T/S Parameter Measurement Quickly and accurately measure a drivers T/S parameters. Just attach the test leads directly to a drivers terminals and click "Measure Free-Air Parameters" and the impedance magnitude will be displayed on the graph along with the measured Re, Fs, Qts, Qes, Qms, and Le. Next add mass to the cone or mount the driver in a suitable test box and click "Measure V(as)" to derive the mechanical parameters such as Vas and Mms. Enclosure Tuning Verification Once your driver is mounted in an enclosure DATS V3 makes it easy to verify your systems overall tuning for vented enclosures or Q for sealed enclosures by using the "Measure Free Air Parameters" button. The system will run a quick sweep and plot the impedance magnitude making it easy to verify the actual tuning of your system.

Læs mere mindre

Umik-1 målemikrofon fra MiniDSP UMIK-1 er en USB målemikrofon fra Minidsp der er perfekt i forbindelse med rum korrigering og højttaler selvbyg. Mikrofonen optager med lav støj og god præcision som du kan regne med. Den er virkelig plug and play og kræver ikke speciel software, så det er blot at forbinde den via USB-C til din PC, MAC eller Linux computer og den vil vise sig som et device. Du kan også bruge den med en Ipad hvis du bruger en lightning til USB converter således du kan tilslutte USB.   Hvordan bruger du UMIK-1 Målemikrofon Læs vores danske guide til hvordan du kommer i gang og laver den første måling => klik her Hver enkelt UMIK-1 mikrofon kommer med en kalibrerings fil som du henter på Minidsps hjemmeside her Du finder søgefeltet ca midt på siden og hvor du taster serie nummeret lind der står på mikrofonen. Herefter downloader du programmet Room-EQ-Wizard typisk omtalt REW, her er linket til at downloade og hvor du kan vælge til hvilken type computer du har. Inden du åbner programmet ha mikrofonen forbundet til din computer, her vil REW nemlig fornemme at du har en UMIK-1 og spørge dig om at verificere at det er rigtigt. Herefter vil REW spørge dig om du ønsker at hente den kalibrerings fil du hentede tidliger. Du får 2 stk kalibrerings filer 0deg filen er til 2 kanals lyd og højttaler byg hvor du skal pege mikrofonen imod midten af hvad du vil måle. 90deg filen er til hjemmebiograf og her skal mikrofonen pege lige op imod loftet.

Læs mere mindre

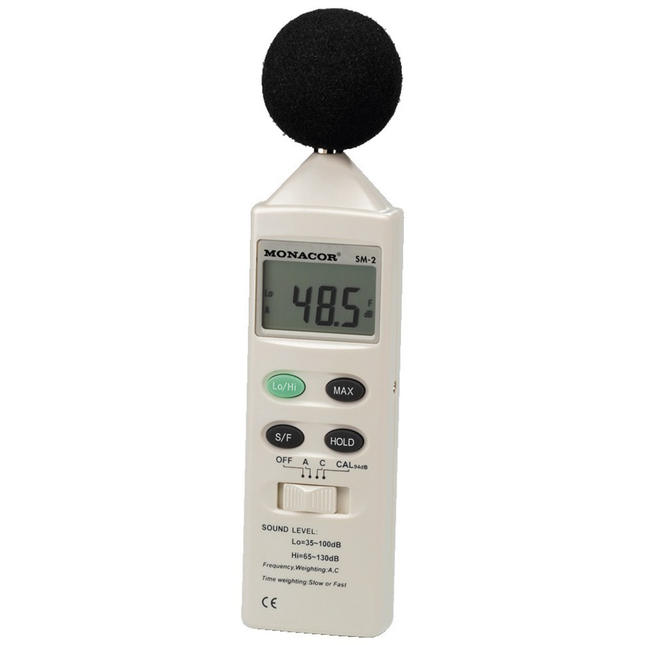

dB Måler - Lydtryks måler / Støj måler SM-2 En virkelig kvalitets lydtryksmåler fra Tyske monacor som er nem at betjene, en hånds betjening. Har funktioner som max og min hold. En dB måler bruges ofte til at måle støj i lokale såsom kontorer og lager bygninger. For at sikre støjen overholder den tilladte grænse. Den er også god til skoler til støj og dB måling. Elektret mikrofonkapsel A-vægtning Max hold og min. hold funktioner Baggrundsbelyst LCD, som slukker automatisk 6,3 mm (¼") gevind Manual SM-2 dB måler Tekniske data SM-2 Display 3½ digits, LCD, 17 mm Frequency range 31.5-8,000 Hz Measuring range Measuring range, low 35-100 dB Measuring range, high 65-130 dB Resolution 0.1 dB Accuracy ±1.5 dB (94 dB/1 kHz) Output V˜ low: 38 mV/dB, 100 Ω high: 8.3 mV/dB, 100 Ω Output V DC current 10 mV/dB, 100 Ω Admiss. ambient temp. 0-40 °C Power supply 9 V battery (not supplied) Dimensions 63x253x30 mm Weight 250 g

Læs mere mindre
