Beskrivelse

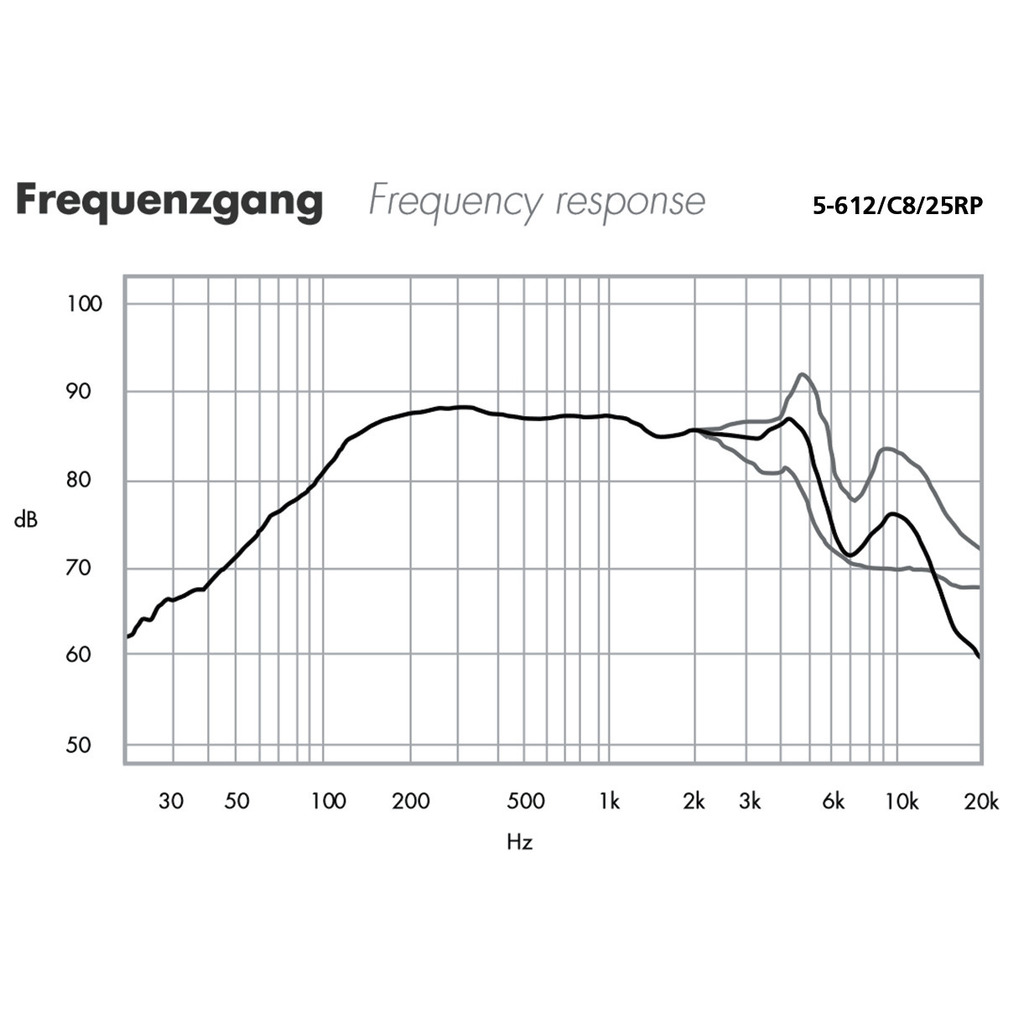

Denne 5" High-end bas/mellemtone har yderst flot spedning og lineæritet op til 2 KHz og har en gengivelse til 4 KHz hvor den ruller pænt af.
Der er opnået flot stabilitet igennem nogle forstærkninger i pap membranen og phase pluggen i midten, som er den projektil formet center.
Thiele-small data:
Impedans 8 ohm
DC modstand (Re) 5,4 ohm
Membran areal (Sd) 80 cm2
Induktion (Le) 0,44 mH
Svingspole diameter 25 mm
Svingspole højde 11 mm
Luftgab højde 6 mm
Xmax +- 7,5 mm
Magnetisk fluxtæthed 1,15 T
Total vægt 1,25 kg
Egenresonans (fs) 53 Hz
Følsomhed (2,83V/1m) 88 dB
Mekanisk Q (Qms) 7,8
Elektrisk Q (Qes) 0.38
Total Q (Qts) 0,36
Bevægelig masse (Mms) 7,8 g
Motor styrke (Bl) 5,9 Tm
Equivalent volumen (Vas) 9,8 ltr
Mekanisk stivhed (Cms) 1,09 mm/N
Mekanisk tab (Rms) 0,37 kg/s
Effekt (IEC) 50 W
Download specifications arket her

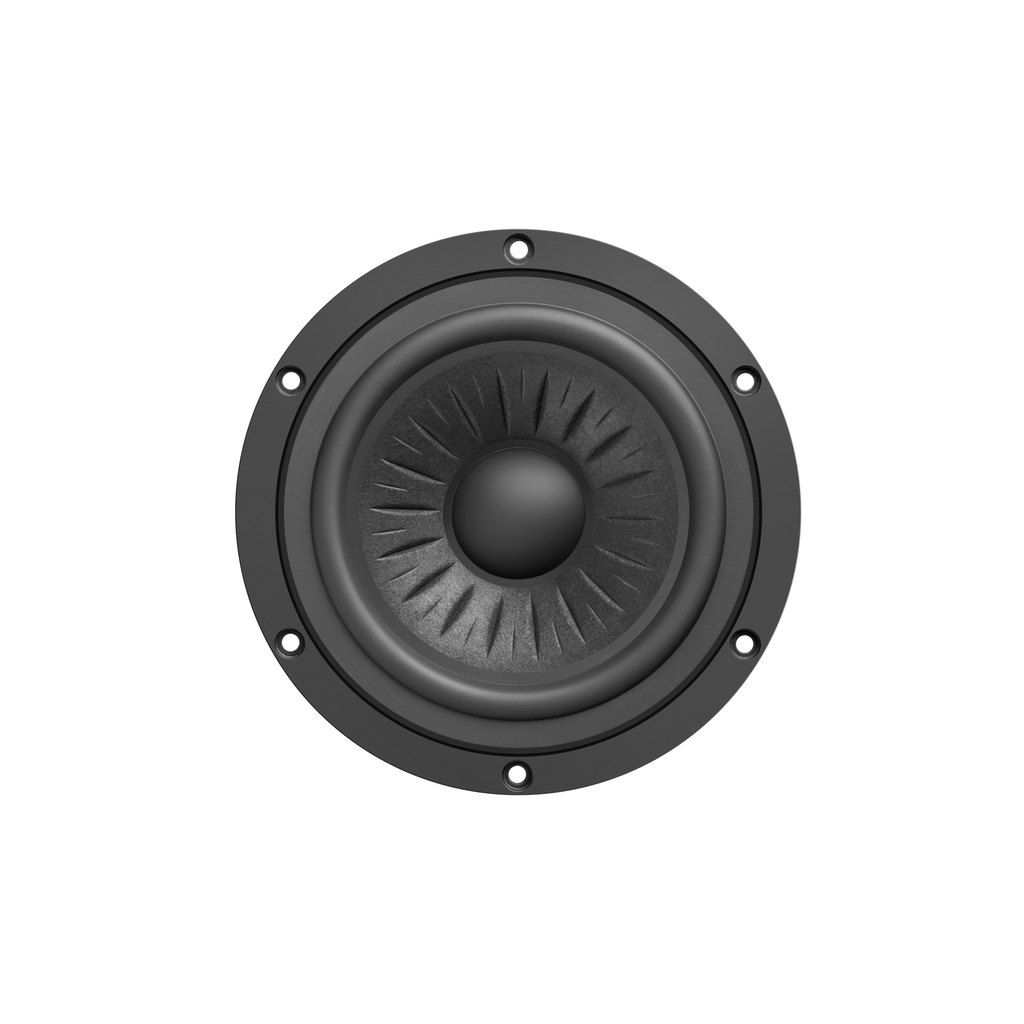

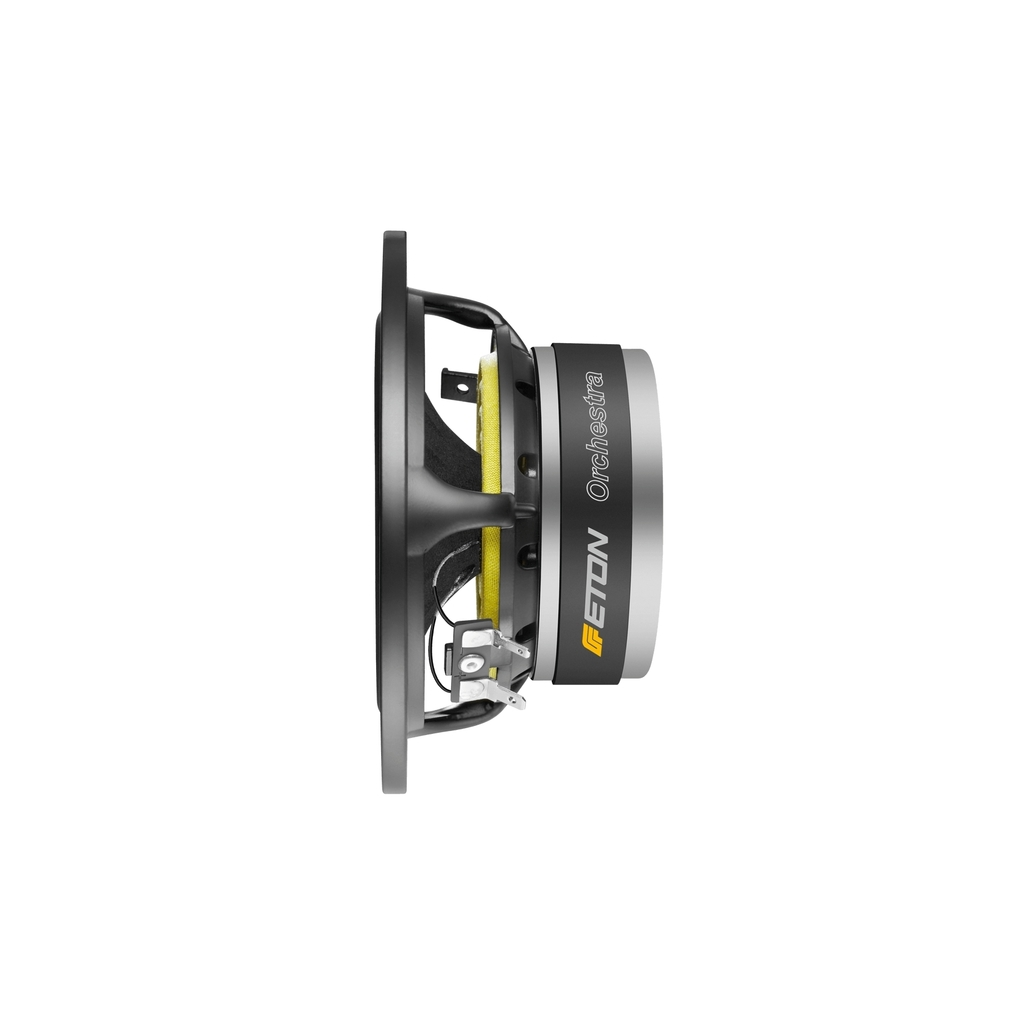

5" højtaler enhed
| TEKNISKE DATA: | |
| Impedance (Z) | 8 ? |
| Transmission method | - |
| Frequency range | f3-4,000 Hz |
| Resonant frequency (fs) | 53 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating (RMS) | 50 W |
| Peak music power output (MAX) | 100 W |
| Sensitivity | 88 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 1.09 mm/N |
| Moving mass (Mms) | 7.8 g |
| Mech. Q factor (Qms) | 7.89 |
| Electr. Q factor (Qes) | 0.38 |
| Total Q factor (Qts) | 0.36 |
| Equivalent volume (Vas) | 9.8 l |
| DC resistance (Re) | 5.4 ? |
| Force factor (BxL) | 5.9 Tm |
| Voice coil induct. (Le) | 0.44 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 2.5 mm |
| Eff. cone area (Sd) | 80 cm2 |
| Magnet weight | - |
| Magnet diameter | Ø 90 mm |

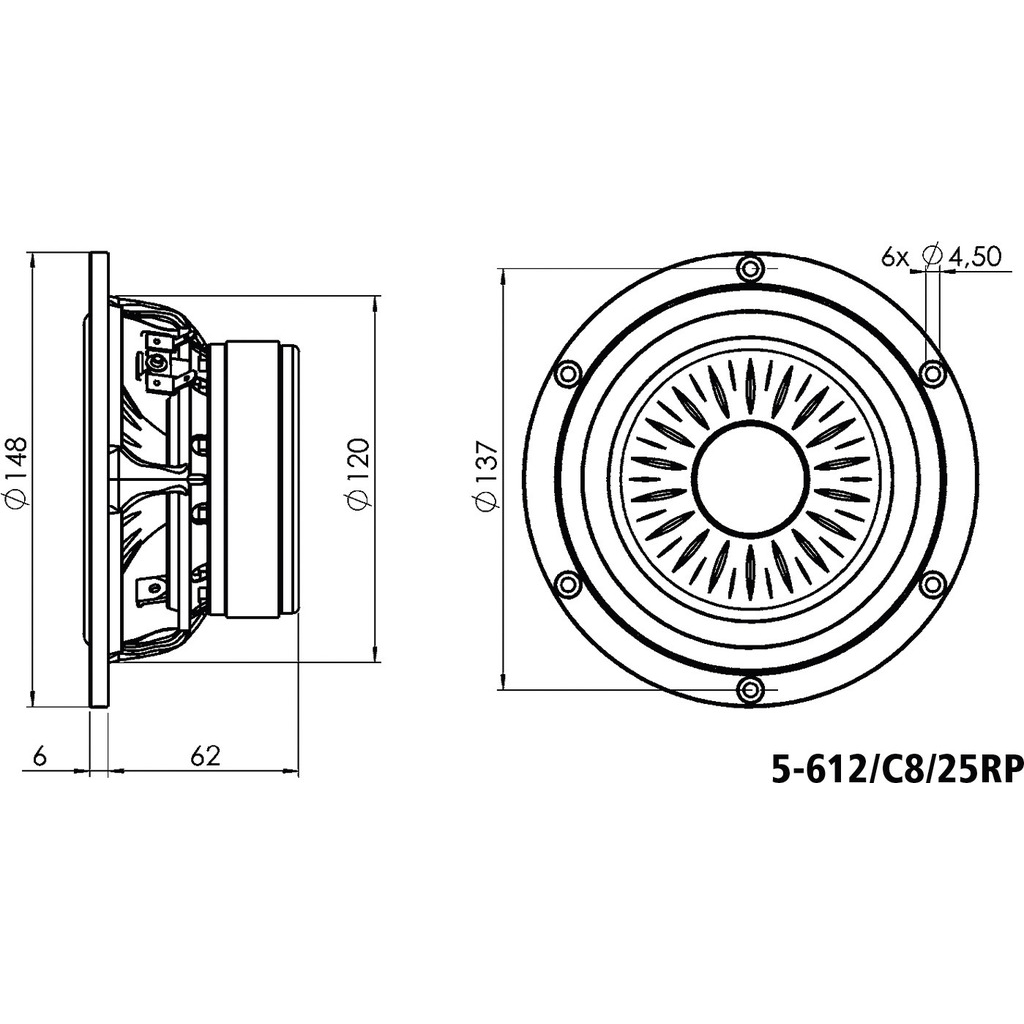

| Mounting cutout | Ø 120 mm |
| Mounting depth | 68 mm |
| Mounting hole diameter | Ø 137 mm |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |
| Dimensions | Ø 148 mm x 68 mm |
| Outside diameter | Ø 148 mm |
| Width | Ø 148 mm |
| Height | - |
| Depth | 68 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.25 kg |
| Packing unit | 1 |
| Type of speaker | 5" |
