Beskrivelse

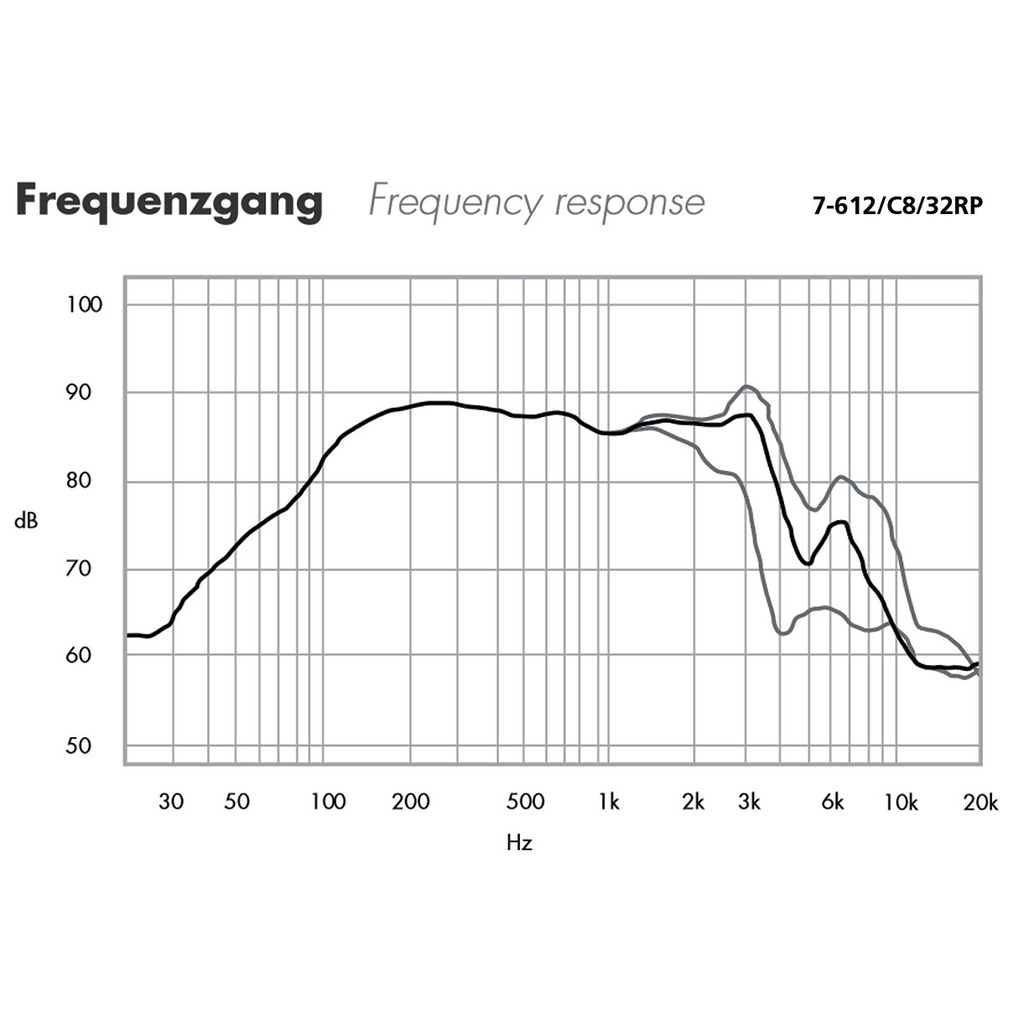

Denne 7" High-end bas/mellemtone har yderst flot spedning og lineæritet op til 1200 Hz og har en gengivelse til 3 KHz hvor den ruller pænt af.
Der er opnået flot stabilitet igennem nogle forstærkninger i pap membranen og phase pluggen i midten, som er den projektil formet center.
Thiele-small data:
Impedans 8 ohm
DC modstand (Re) 6,5 ohm
Membran areal (Sd) 137 cm2
Induktion (Le) 0,81 mH
Svingspole diameter 32 mm
Svingspole højde 17 mm
Luftgab højde 8 mm
Xmax +- 8,8 mm
Magnetisk fluxtæthed 1,0 T
Total vægt 1,96 kg
Egenresonans (fs) 34 Hz
Følsomhed (2,83V/1m) 89 dB
Mekanisk Q (Qms) 5,95
Elektrisk Q (Qes) 0.32
Total Q (Qts) 0,3
Bevægelig masse (Mms) 17,3 g
Motor styrke (Bl) 8,6 Tm
Equivalent volumen (Vas) 28 ltr
Mekanisk stivhed (Cms) 1,07 mm/N
Mekanisk tab (Rms) 0,73 kg/s
Effekt (IEC) 80 W
Download specifications arket her
High-end hi-fi bass-midrange speaker, 80 W, 8 Ω

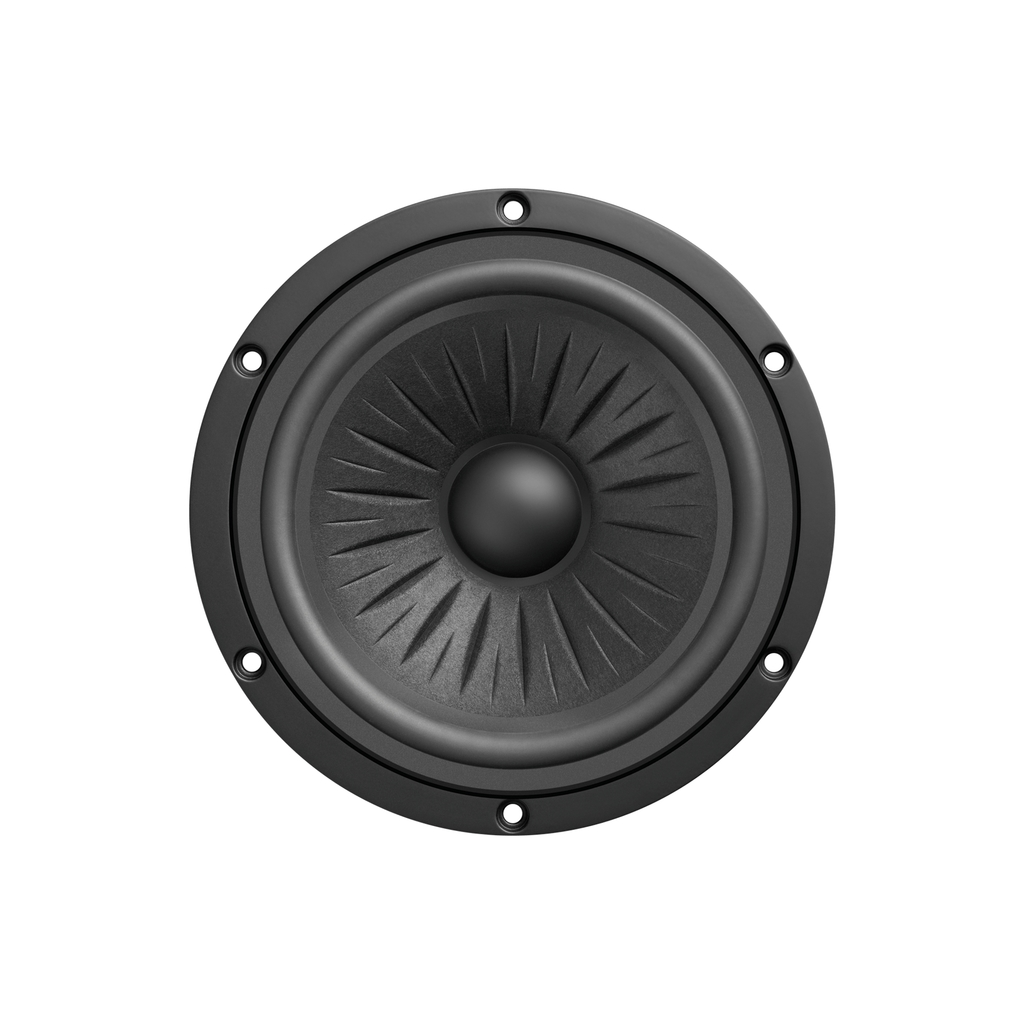

- 18 cm (7") bass-midrange speaker for versatile applications
- Ribbed cone geometry, paper version
- Warm sound with a soft, well-defined midrange and a fast, crisp bass reproduction
- For versatile applications in 2-way systems and multi-way systems
- Equipped with a dust cap
| TEKNISKE DATA: | |

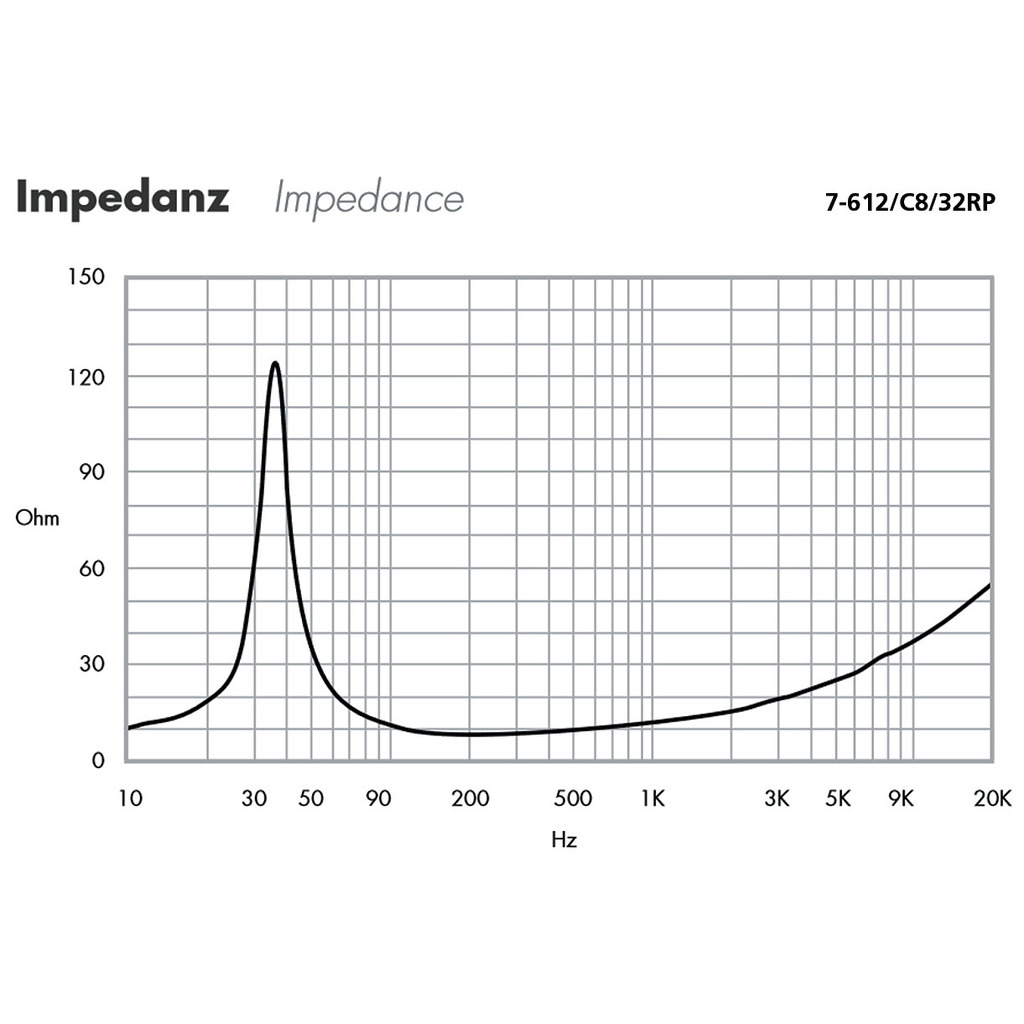

| Impedance (Z) | 8 ? |
| Transmission method | - |
| Frequency range | f3-3,000 Hz |
| Resonant frequency (fs) | 34 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating (RMS) | 80 W |
| Peak music power output (MAX) | 160 W |
| Sensitivity | 89 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 1.07 mm/N |
| Moving mass (Mms) | 17.3 g |
| Mech. Q factor (Qms) | 5.95 |
| Electr. Q factor (Qes) | 0.32 |
| Total Q factor (Qts) | 0.30 |
| Equivalent volume (Vas) | 28 l |
| DC resistance (Re) | 6.5 ? |
| Force factor (BxL) | 8.6 Tm |
| Voice coil induct. (Le) | 0.81 mH |
| Voice coil diameter | Ø 32 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 4.5 mm |
| Eff. cone area (Sd) | 137 cm2 |
| Magnet weight | - |

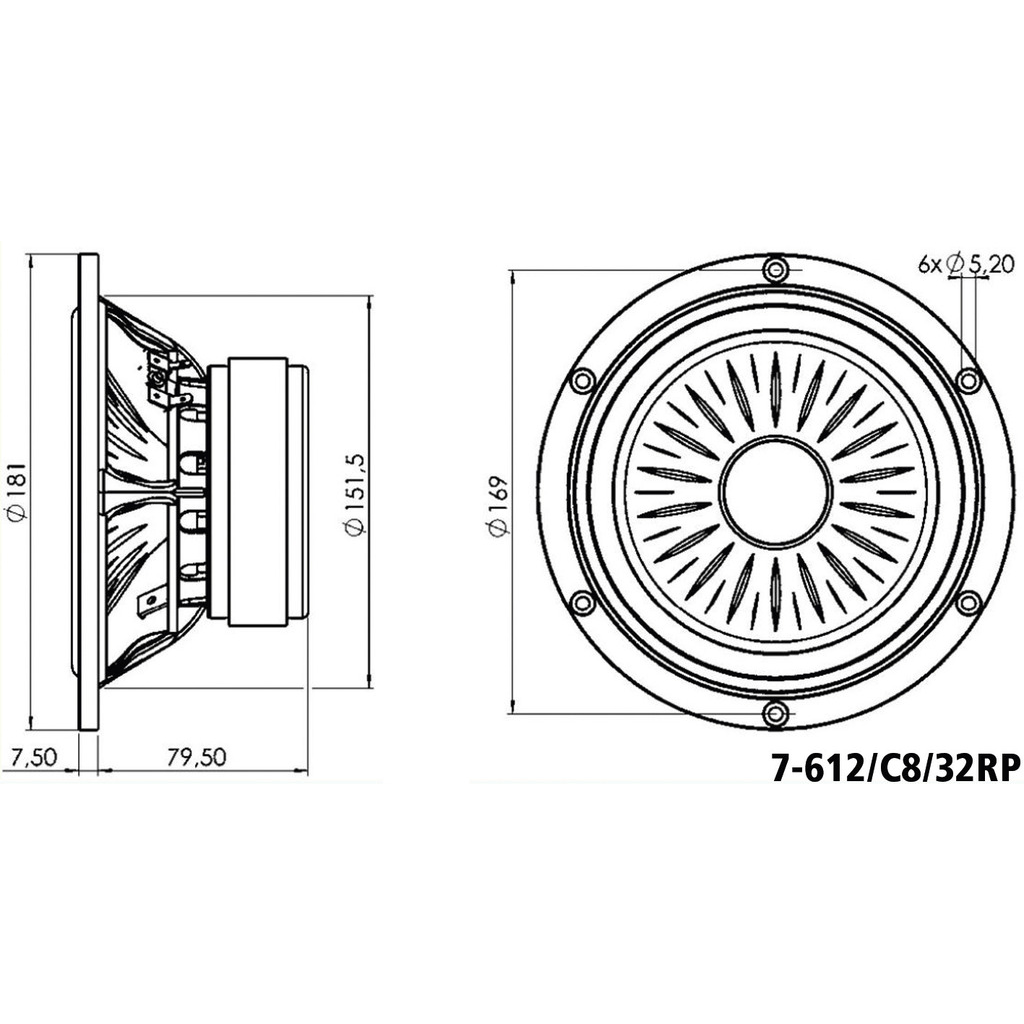

| Magnet diameter | Ø 102 mm |
| Mounting cutout | Ø 152 mm |
| Mounting depth | 79.5 mm |
| Mounting hole diameter | Ø 169 mm |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |
| Dimensions | Ø 181 mm x 87 mm |
| Outside diameter | Ø 181 mm |
| Width | Ø 181 mm |
| Height | - |
| Depth | 87 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.96 kg |
| Packing unit | 1 |
| Type of speaker | 7" |
