Beskrivelse

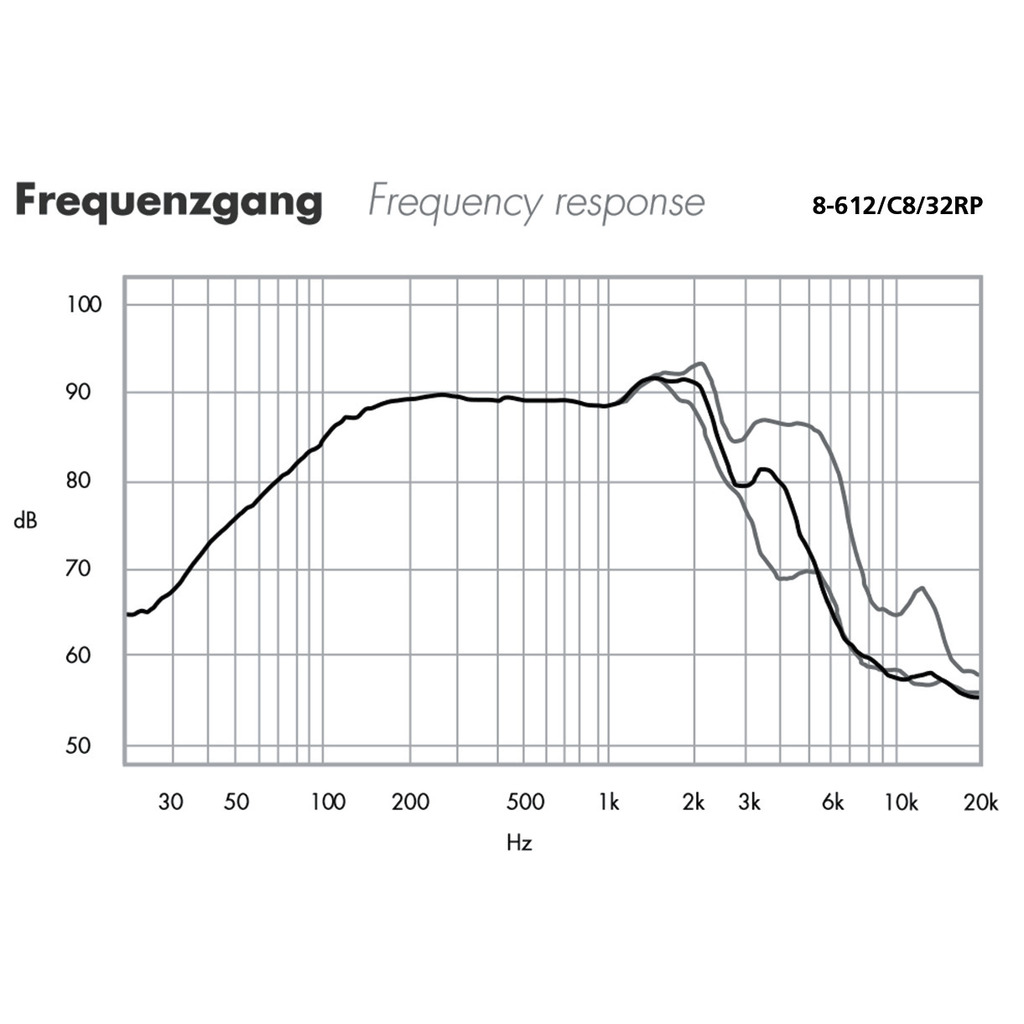

Denne 8" High-end basenhed har yderst flot lineæritet op til 1000 Hz og er oplagt til 3 vejs eller sågar en subwoofer.
Dette gør den god til et 3 vejs system endda subwoofer.
Der er opnået flot stabilitet igennem nogle forstærkninger i pap membranen.
Thiele-small data:
Impedans 8 ohm
DC modstand (Re) 6,6 ohm
Membran areal (Sd) 222 cm2
Induktion (Le) 0,99 mH
Svingspole diameter 32 mm
Svingspole højde 17 mm
Luftgab højde 8 mm
Xmax +- 14,2 mm
Magnetisk fluxtæthed 1,0 T
Total vægt 2,14 kg
Egenresonans (fs) 26 Hz
Følsomhed (2,83V/1m) 90 dB
Mekanisk Q (Qms) 6,67
Elektrisk Q (Qes) 0.32
Total Q (Qts) 0,3
Bevægelig masse (Mms) 26,3 g
Motor styrke (Bl) 9,3 Tm
Equivalent volumen (Vas) 100 ltr
Mekanisk stivhed (Cms) 1,48 mm/N
Mekanisk tab (Rms) 0,69 kg/s
Effekt (IEC) 80 W
Download specifications arket her

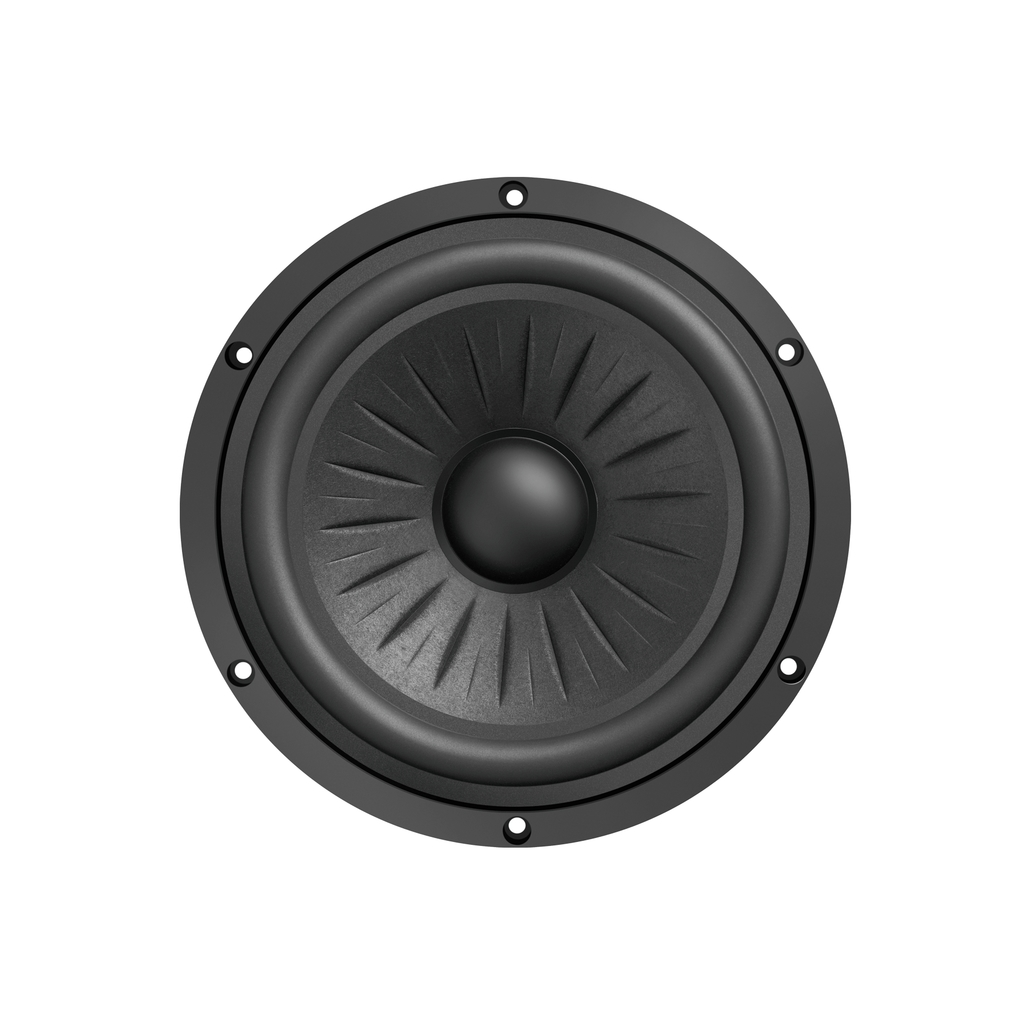

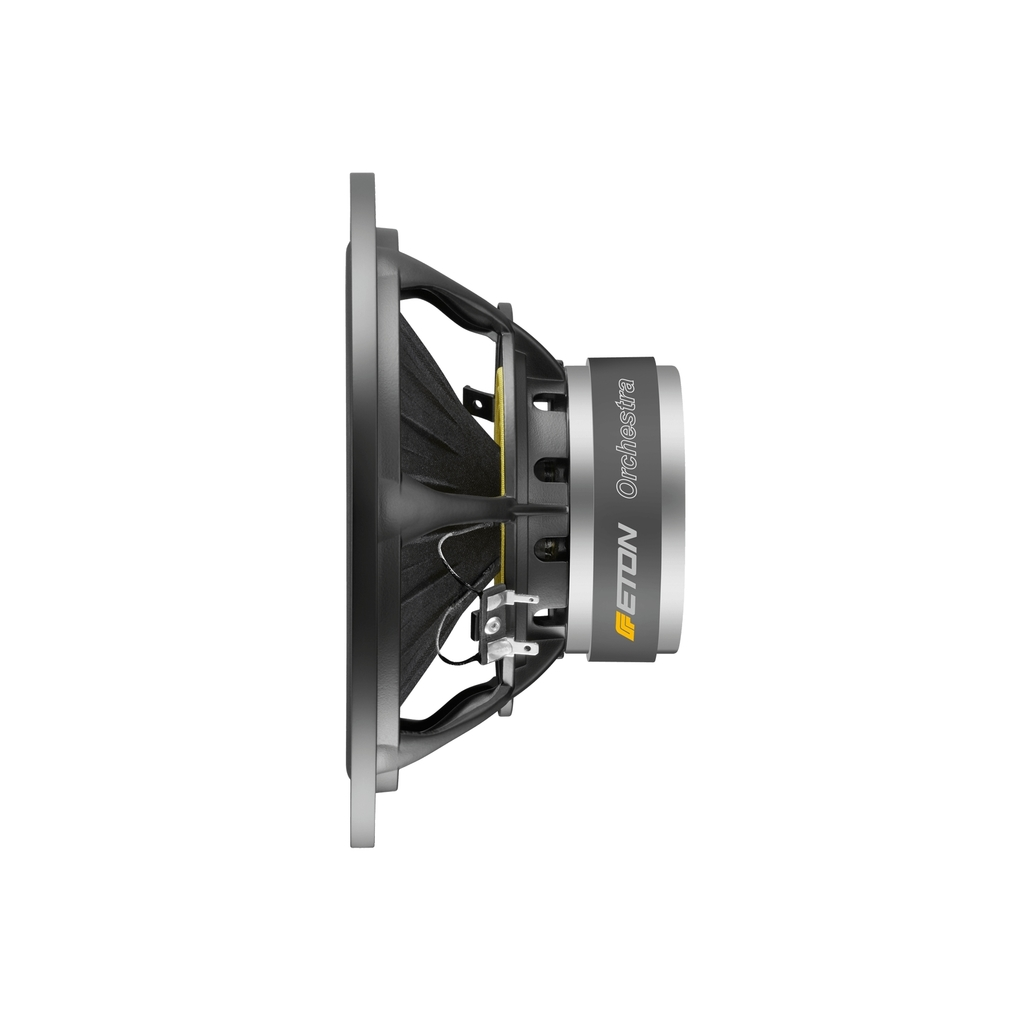

High-end hi-fi bass speaker, 80 W, 8 Ω
- 20 cm (8") bass speaker of long excursion
- Ribbed cone geometry, paper version
- Soft and voluminous sound
- Features an impressive transient response
- Primarily suitable for bass-reflex designs
| TEKNISKE DATA: | |

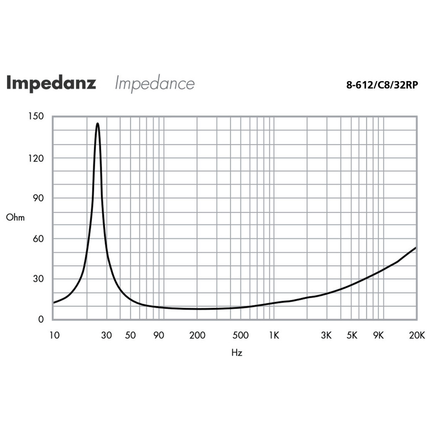

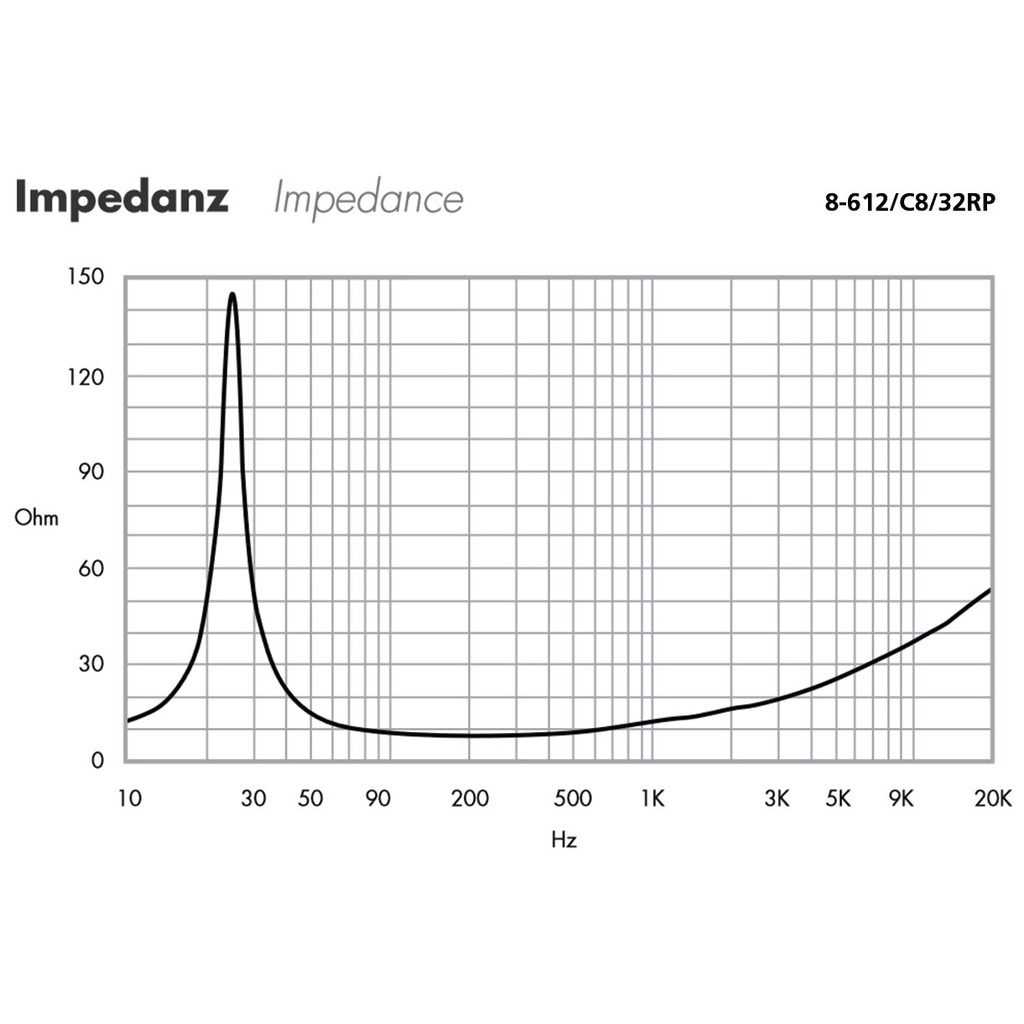

| Impedance (Z) | 8 ohm |
| Transmission method | - |
| Frequency range | f3-2,000 Hz |
| Resonant frequency (fs) | 24 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating (RMS) | 80 W |
| Peak music power output (MAX) | 160 W |
| Sensitivity | 90 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 1.48 mm/N |
| Moving mass (Mms) | 26.3 g |
| Mech. Q factor (Qms) | 6.67 |
| Electr. Q factor (Qes) | 0.32 |
| Total Q factor (Qts) | 0.30 |
| Equivalent volume (Vas) | 100 l |
| DC resistance (Re) | 6.6 ? |
| Force factor (BxL) | 9.3 Tm |
| Voice coil induct. (Le) | 0.99 mH |
| Voice coil diameter | Ø 32 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 4.5 mm |
| Eff. cone area (Sd) | 222 cm2 |
| Magnet weight | - |

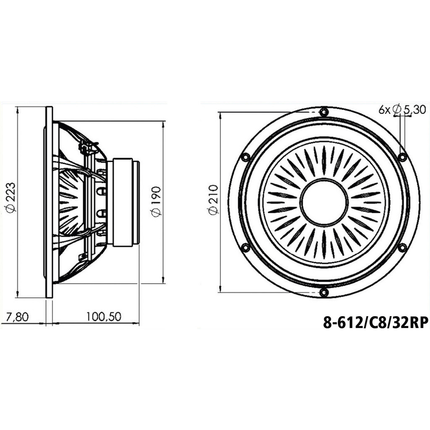

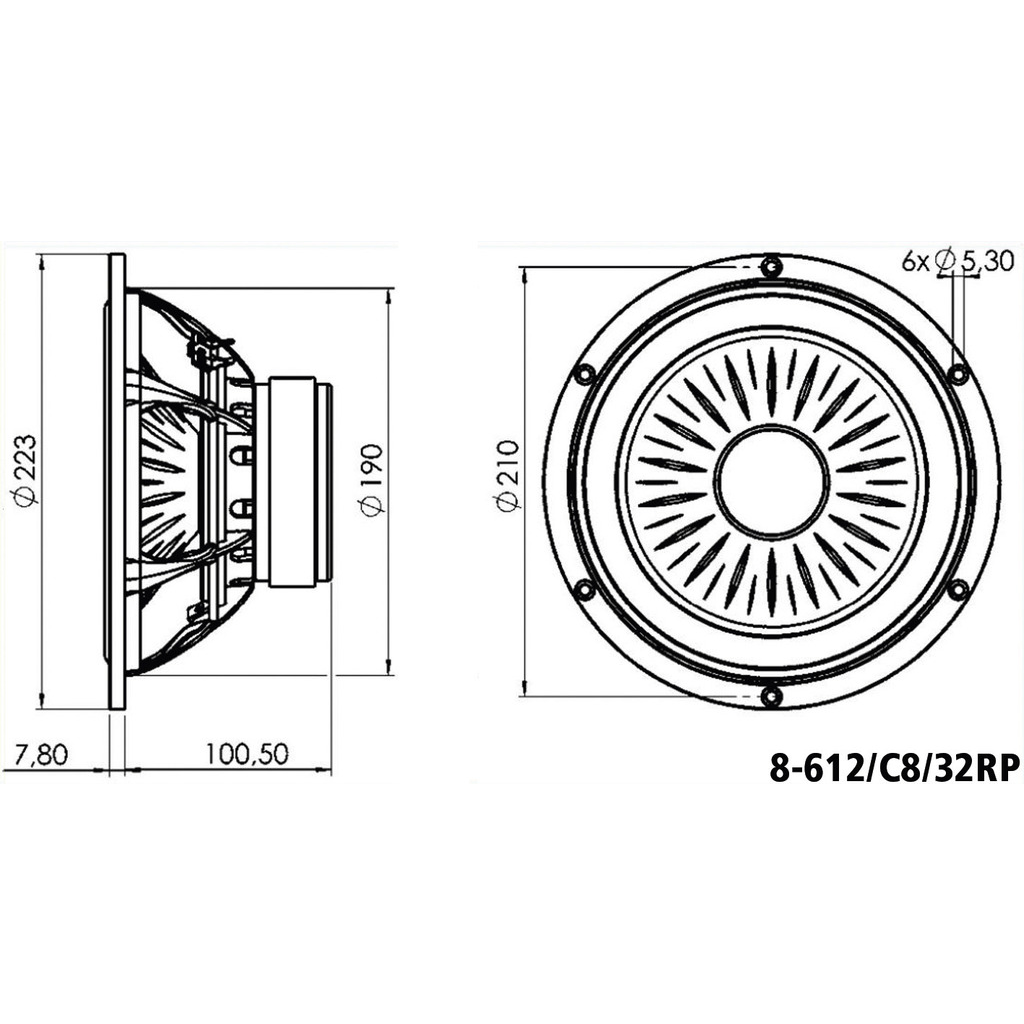

| Magnet diameter | Ø 102 mm |
| Mounting cutout | Ø 190 mm |
| Mounting depth | 100.5 mm |
| Mounting hole diameter | Ø 210 mm |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |
| Dimensions | Ø 223 mm x 108.3 mm |
| Outside diameter | Ø 223 mm |
| Width | Ø 223 mm |
| Height | - |
| Depth | 108.3 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.13 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
