Professional Speakers from IMG Stage Line
Of very high power capability, high efficiency and with drive parameters which allow a reproduction of the complete bass range. These speakers guarantee excellent results as bass-midrange speakers in 2-way or multiway systems as well as subwoofers with the two larger models.

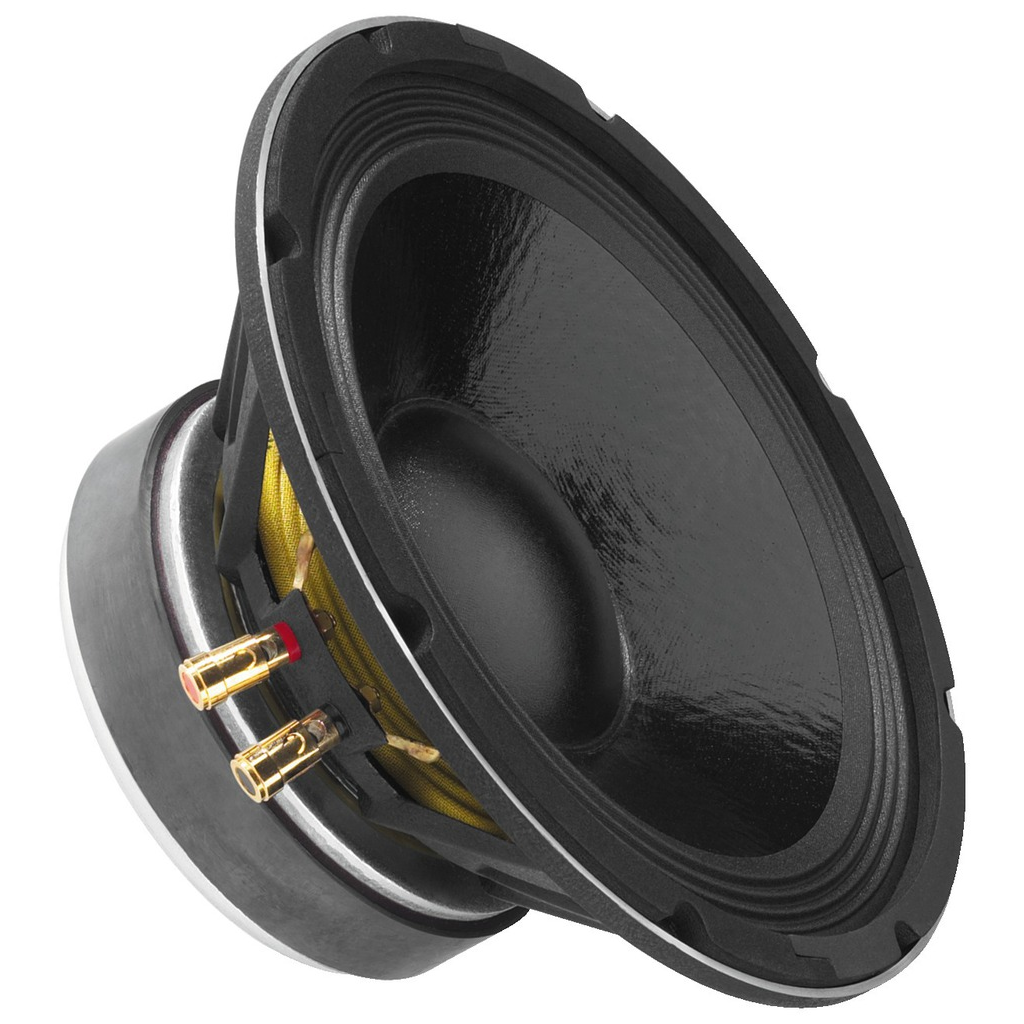

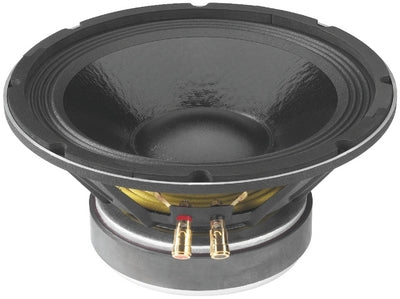

Professional PA bass-midrange speaker, 600 WMAX, 300 WRMS, 8 Ω
- Of very high power capability
- 25 cm (10") professional speaker of long excursion
- Diecast basket
- Cone with water-repellent coating
- Very neat workmanship with a facing basket front

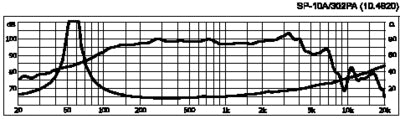

- Wide frequency response of low distortion
- High efficiency
- Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation

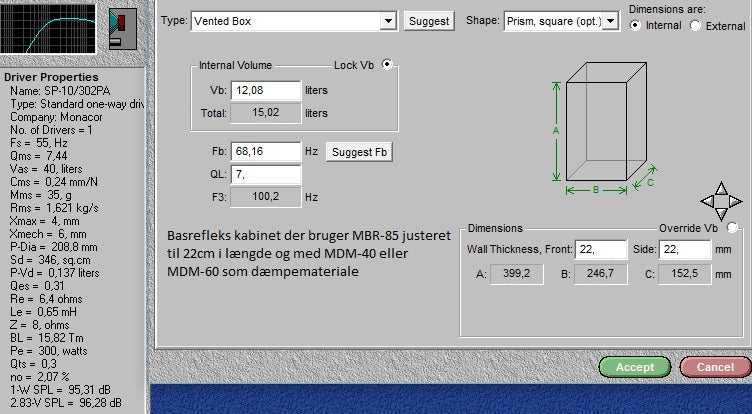

- For compact bass-reflex cabinets from 20 litres on already
- For all kinds of professional and semiprofessional PA applications
|
| Impedance (Z) |
8 Ω |
| Resonant frequency (fs) |
55 Hz |
| Max. frequency range |
f3-3,500 Hz |
| Music power |
600 WMAX
|
| Power rating (P) |
300 WRMS
|
| SPL (1 W/m) |
98 dB |
| Suspension compl. (Cms) |
0.24 mm/N |
| Moving mass (Mms) |
35 g |
| Mech. Q factor (Qms) |
7.44 |
| Electr. Q factor (Qes) |
0.31 |
| Total Q factor (Qts) |
0.30 |
| Equivalent volume (Vas) |
40 l |
| DC resistance (Re) |
6.4 Ω |
| Force factor (BxL) |
15.82 Tm |
| Voice coil induct. (Le) |
0.65 mH |
| Voice coil diameter |
66 mm |
| Voice coil former |
Kapton |
| Linear excursion (XMAX) |
±4 mm |
| Eff. cone area (Sd) |
346 cm2
|
| Magnet weight |
2 kg |
| Weight |
5 kg |
