Name: LSI-100T Trafospole 10mH 1,6mm
Brand: Monacor
SKU: 125490
Price: 269.0 DKK
Availability: InStock

LSI-100T Trafospole 10mH 1,6mm

Monacor
Del
- WhatsApp
- Del
- X
- Pin it
- Messenger
- E-mail

LSI-100T Trafospole 10mH 1,6mm

Monacor
Del
- WhatsApp
- Del
- X
- Pin it
- Messenger
- E-mail

Produktformular

Transformer Core CoilsHigh-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first... Læs mere

Varenummer: 125490

269,00 kr Inkl. moms

Fri fragt over 799 kr

Hurtig levering på lagervarer - 1-3 dage

14 dages fuld returret

Beskrivelse

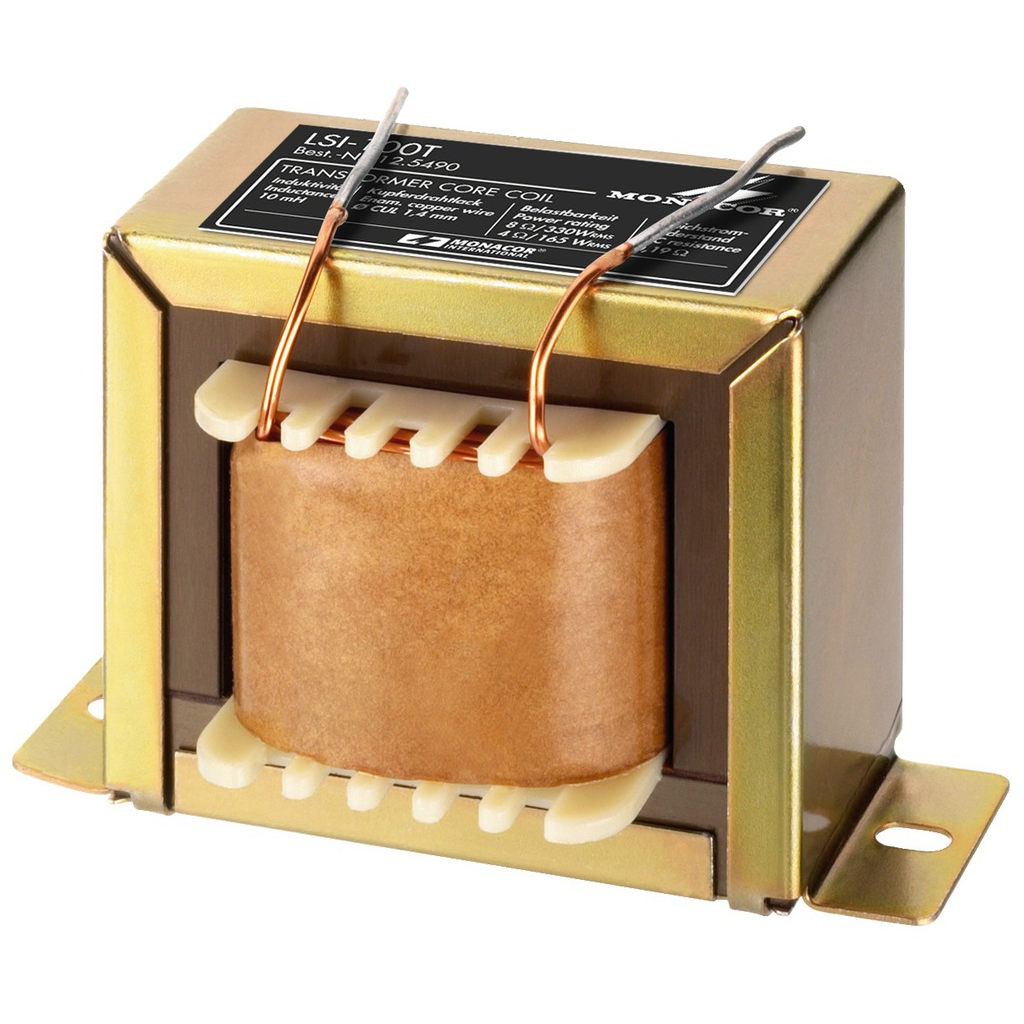

Transformer Core Coils
High-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.

Inductance	10 mH
Enam. copper wire (CUL)	Ø 1.4 mm
Power rating 8 Ω/4 Ω	330 W_RMS/165 W_RMS
DC resistance	0.19 Ω
Saturation current (50 Hz)	6.4 A
Dimensions	68x58x55 mm (EI-66)

Specifikationer

AWG	14
DCR [Ω]	0.19
Diameter Ø [mm]	58
Højde [mm]	55
Inductance [mH]	10
Spoletype	Trafospole
Tolerance [%]	2
Tråd [mm]	1.6
Vægt [g]	1006
