Name: LSI-12T Trafospole 12mH
Brand: Monacor
SKU: 123190
Price: 559.0 DKK
Availability: InStock

LSI-12T Trafospole 12mH

Monacor
Del
- WhatsApp
- Del
- X
- Pin it
- Messenger
- E-mail

LSI-12T Trafospole 12mH

Monacor
Del
- WhatsApp
- Del
- X
- Pin it
- Messenger
- E-mail

Produktformular

Transformer Core CoilsHigh-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first... Læs mere

Varenummer: 123190

559,00 kr Inkl. moms

Fri fragt over 799 kr

Hurtig levering på lagervarer - 1-3 dage

14 dages fuld returret

Beskrivelse

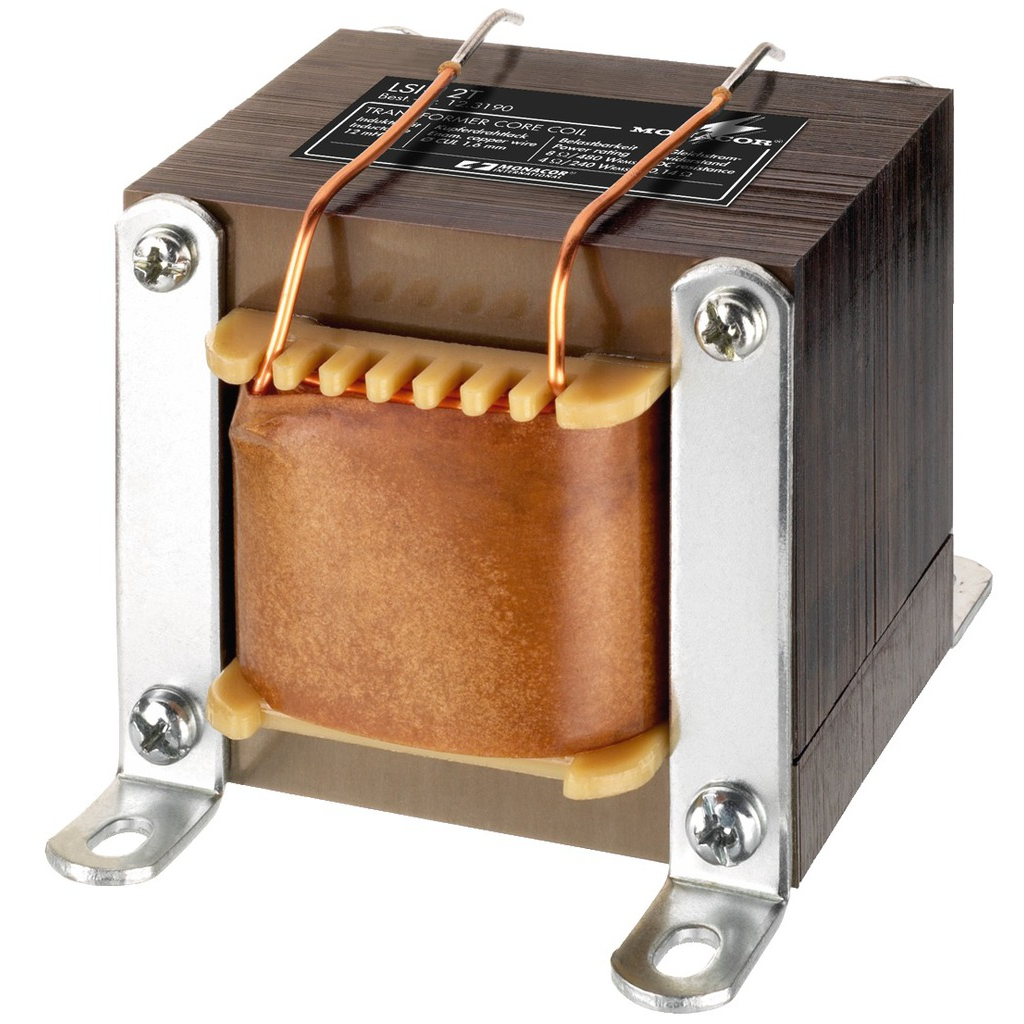

Transformer Core Coils
High-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.

Inductance	12 mH
Enam. copper wire (CUL)	Ø 1.6 mm
Power rating 8 Ω/4 Ω	480 W_RMS/240 W_RMS
DC resistance	0.14 Ω
Saturation current (50 Hz)	7.7 A
Dimensions	76x65x92 mm (EI-76)

Specifikationer

AWG	14
DCR [Ω]	0.14
Diameter Ø [mm]	65
Højde [mm]	92
Inductance [mH]	12
Spoletype	Trafospole
Tolerance [%]	2
Tråd [mm]	1.6
Vægt [g]	1910
