LSI-56T Trafospole 5.6mH 1,4mm Monacor

LSI-56T Trafospole 5.6mH 1,4mm Monacor

Produktformular

Transformer Core CoilsHigh-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first... Læs mere

Varenummer: 125460

249,00 kr Inkl. moms

    • Fri fragt over 799 kr
    • Hurtig levering på lagervarer - 1-3 dage
    • 14 dages fuld returret

    Beskrivelse

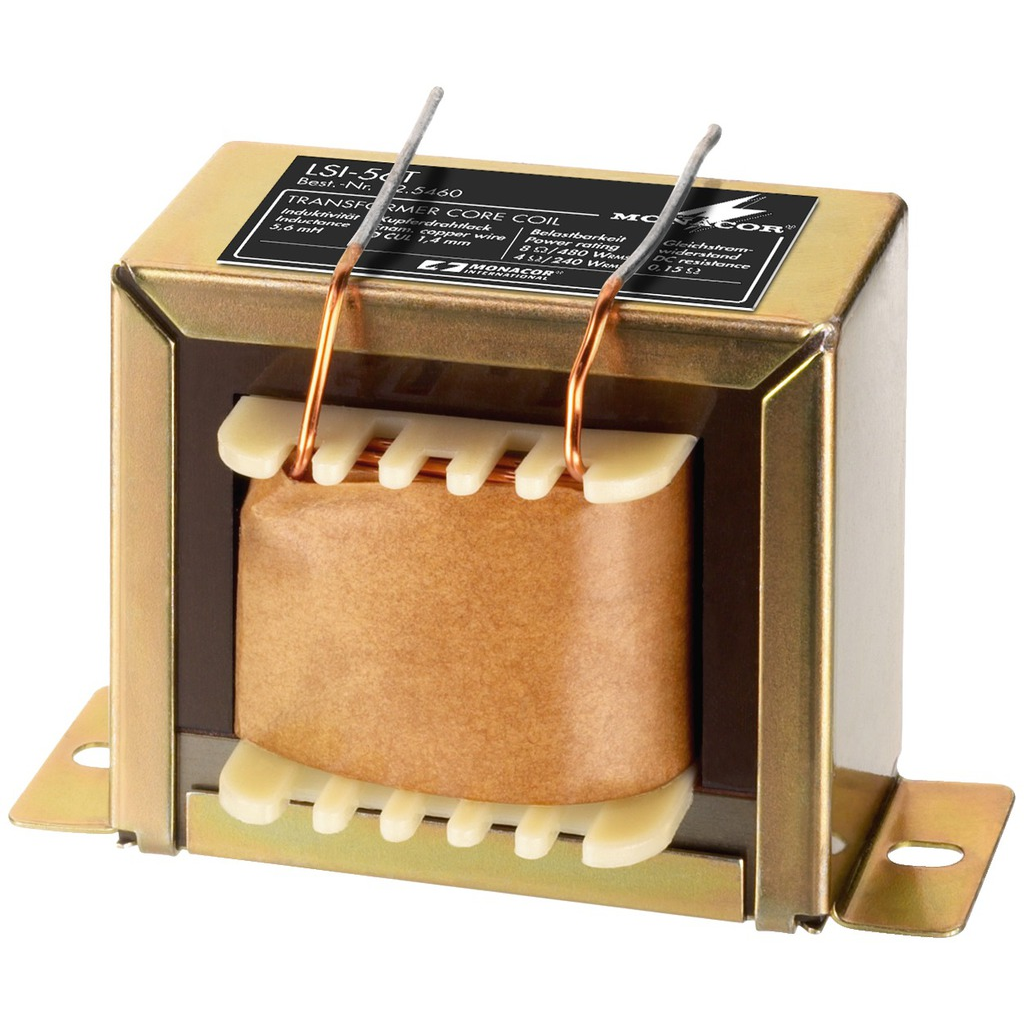

    Transformer Core Coils
    High-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.
    |
    Inductance 5.6 mH
    Enam. copper wire

    (CUL)

    		 Ø 1.4 mm
    Power rating

    8 Ω/4 Ω

    		 480 WRMS/240 WRMS
    DC resistance 0.15 Ω
    Saturation current

    (50 Hz)

    		 7.7 A
    Dimensions 68x58x55 mm (EI-66)

    Specifikationer

    AWG 15
    DCR [Ω] 0.15
    Diameter Ø [mm] 58
    Højde [mm] 55
    Inductance [mH] 5.6
    Spoletype Trafospole
    Tolerance [%] 2
    Tråd [mm] 1.4
    Vægt [g] 945
