Beskrivelse

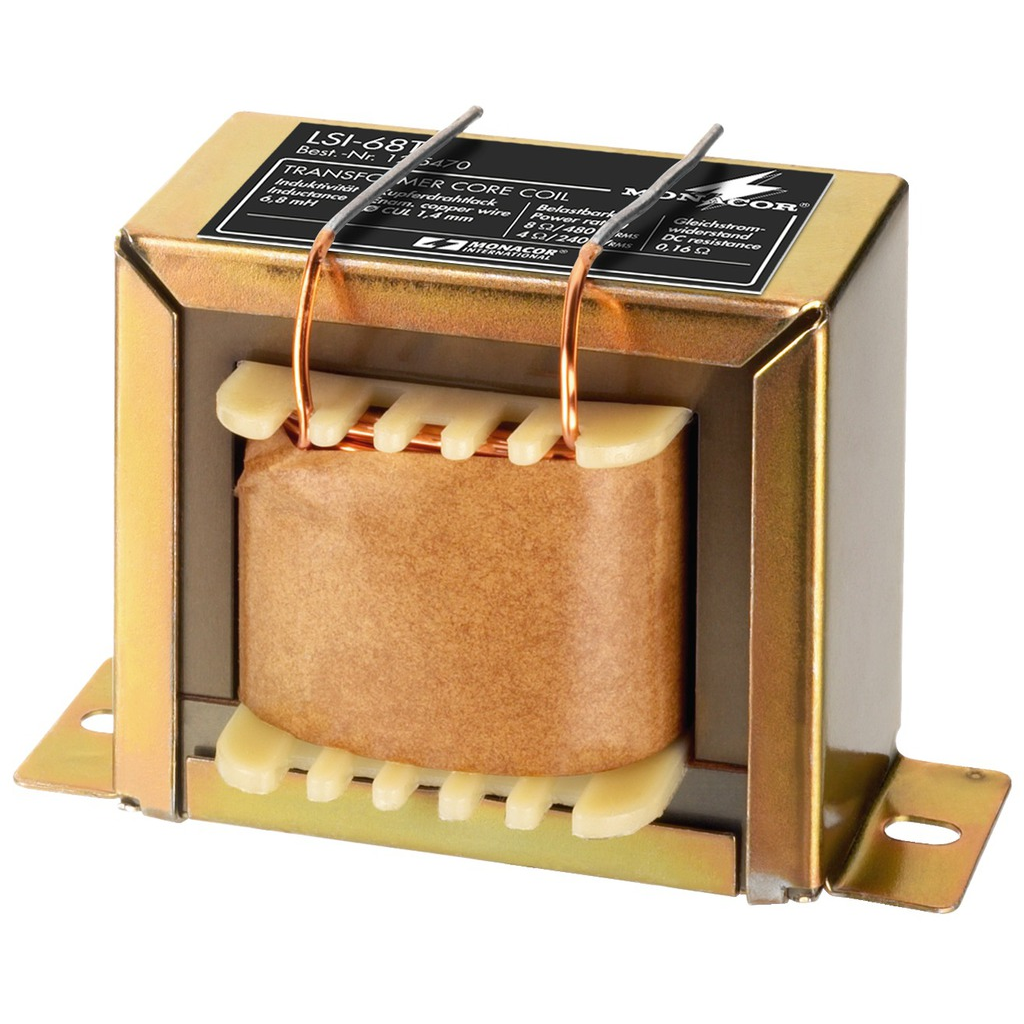

Transformer Core Coils
High-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.
|
Inductance 6.8 mH
Enam. copper wire

(CUL)

 Ø 1.4 mm
Power rating

8 Ω/4 Ω

 480 WRMS/240 WRMS
DC resistance 0.16 Ω
Saturation current

(50 Hz)

 7.7 A
Dimensions 68x58x55 mm (EI-66)

Specifikationer

AWG 14
DCR [Ω] 0.16
Diameter Ø [mm] 58
Højde [mm] 55
Inductance [mH] 6.8
Spoletype Trafospole
Tolerance [%] 2
Tråd [mm] 1.6
Vægt [g] 957
