High-Quality PA Speakers
For general stage and professional DJ applications. Excellent workmanship and perfect specifications for bass-reflex speaker systems of high power capability.

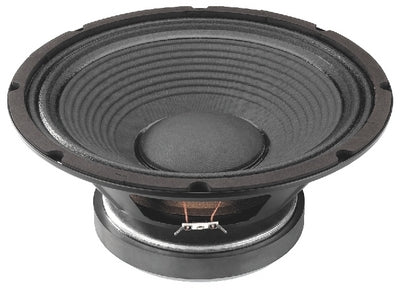

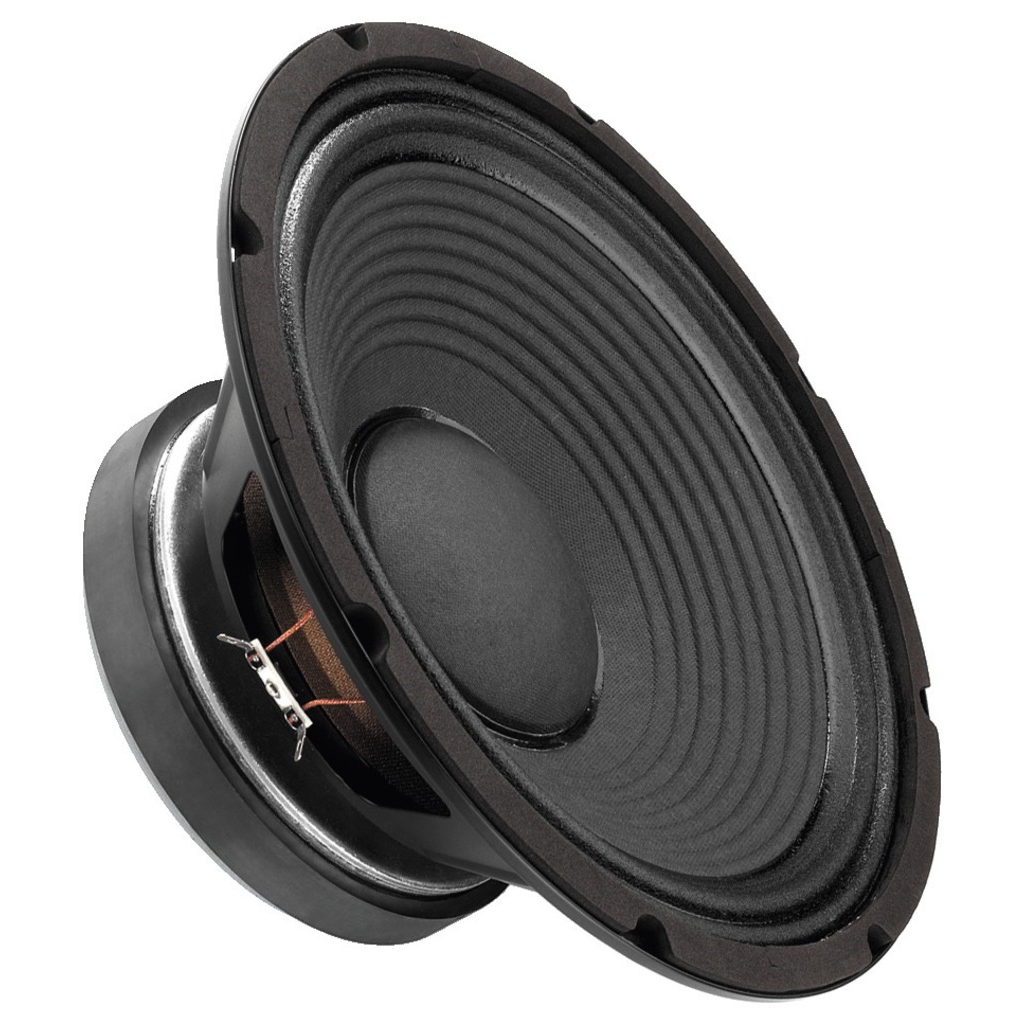

PA bass-midrange speaker, 400 WMAX, 200 WRMS, 8 Ω
- Very high efficiency and perfect specifications for the use in compact full range speaker systems
- Can ideally be combined with mid-high range horns
|
| Impedance (Z) |
8 Ω |
| Resonant frequency (fs) |
45 Hz |

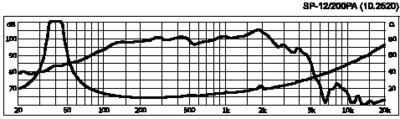

| Max. frequency range |
f3-5,000 Hz |
| Music power |
400 WMAX
|
| Power rating (P) |
200 WRMS
|
| SPL (1 W/m) |
100 dB |
| Suspension compl. (Cms) |
0.29 mm/N |
| Moving mass (Mms) |
43 g |
| Mech. Q factor (Qms) |
5.20 |
| Electr. Q factor (Qes) |
0.35 |
| Total Q factor (Qts) |
0.33 |
| Equivalent volume (Vas) |
114 l |
| DC resistance (Re) |
6.8 Ω |
| Force factor (BxL) |
15.4 Tm |
| Voice coil induct. (Le) |
1.2 mH |

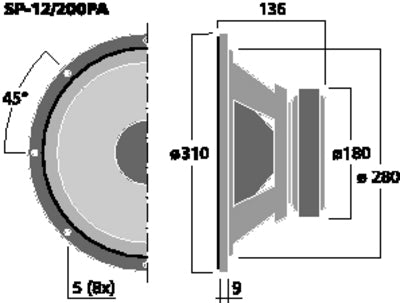

| Voice coil diameter |
78 mm |
| Voice coil former |
Kapton |
| Linear excursion (XMAX) |
±4 mm |
| Eff. cone area (Sd) |
531 cm2
|
| Magnet weight |
1.8 kg |
| Weight |
6 kg |
