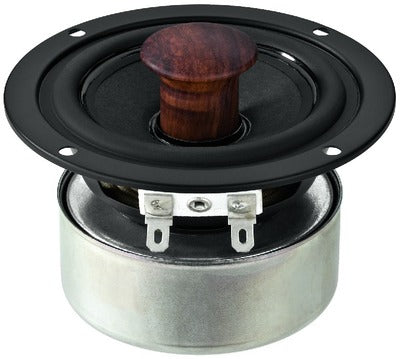

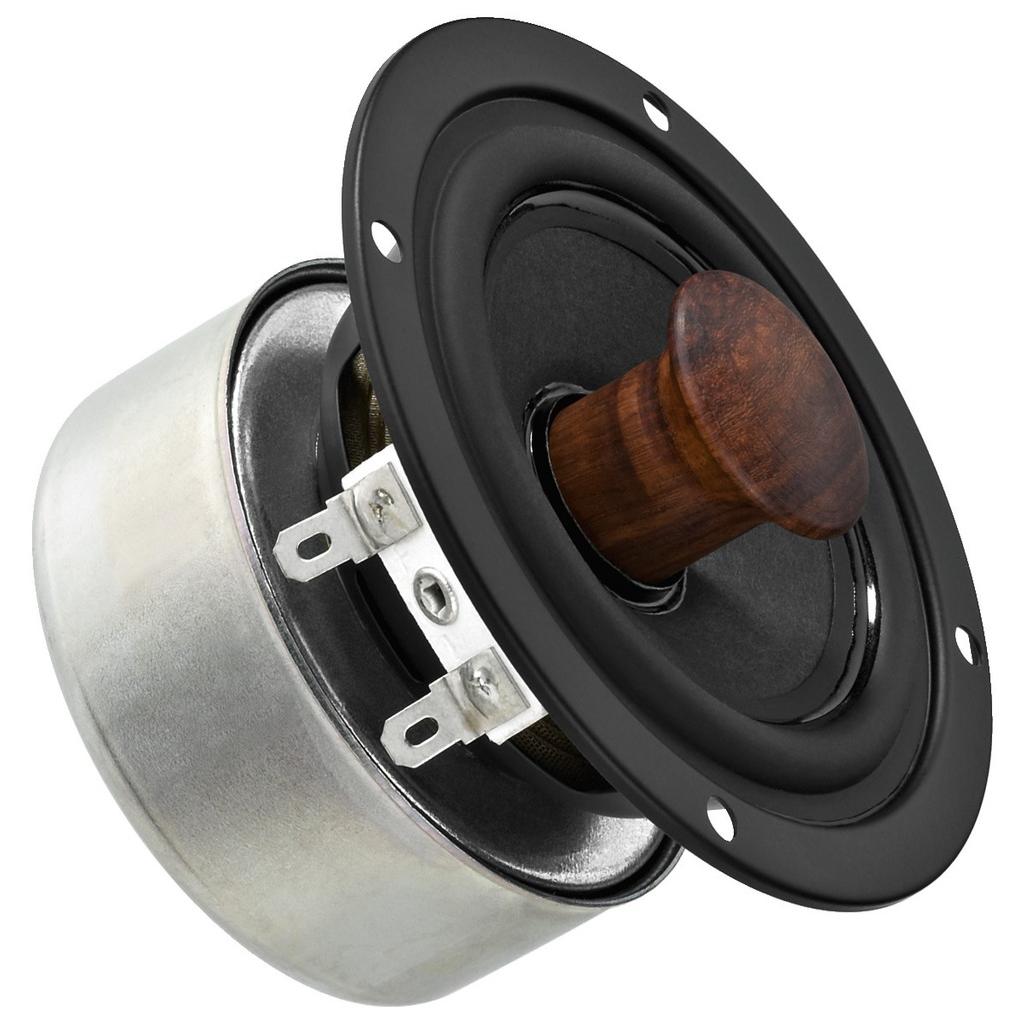

HiFI Fuldtone enhed SPX-32M 3 "
Kvalitets enhed med suværen lyd. Denne enhed er bygget op efter de bedste principper, med en pair membran som er let og stiv. Phaseplug lavet i træ for den bedste lydspredning. Ventilation. Skærmet magent system.
En enhed der egner sig perfekt som enhed i satelit højtaler.
Hi-fi full range speaker, 40 WMAX, 20 WRMS, 8 Ω
- Excellent sound quality
- High-quality paper cone
- Wooden phase plug for optimising the radiation
- Rear ventilation of the centering spider
- Shielded magnetic system
- Application in small speakers or satellite systems
- Ideally suited for the application in FAST speakers (full range and subwoofer technology)
HOBBY HiFi 03/2012
"Audiophile characteristics due to paper cone and solid wooden phase plug."
|
| Impedance (Z) |
8 Ω |
| Resonant frequency (fs) |
110 Hz |
| Max. frequency range |
f3-22,000 Hz |
| Music power |
40 WMAX
|
| Power rating (P) |
20 WRMS
|
| SPL (1 W/m) |
88 dB |
| Suspension compl. (Cms) |
1.11 mm/N |
| Moving mass (Mms) |
1.7 g |
| Mech. Q factor (Qms) |
7.66 |
| Electr. Q factor (Qes) |
0.60 |
| Total Q factor (Qts) |
0.56 |
| Equivalent volume (Vas) |
1.6 l |
| DC resistance (Re) |
6.6 Ω |
| Force factor (BxL) |
3.69 Tm |
| Voice coil induct. (Le) |
0.18 mH |
| Voice coil diameter |
Ø 20 mm |
| Voice coil former |
Kapton |
| Linear excursion (XMAX) |
±1.1 mm |
| Eff. cone area (Sd) |
32 cm2
|
| Magnet weight |
99 g |
| Weight |
0.52 kg |
