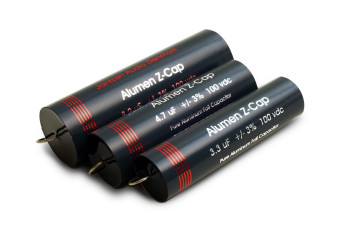

6,8 uF Alumen Z-cap kondensator Jantzen Audio

The Alumen Z-Cap is a high-end pure aluminum foil capacitor, designed specifically for passive crossovers (tweeters and midrange drivers).

It utilizes much thinner dielectric insulation compared to the market standard.

A high voltage rating is not needed for application related to passive loudspeaker crossovers.

The usage of a thinner dielectric insulator allows for capacitors with less “memory” and one that is much faster reacting.

The Alumen Z-Cap offers unparalleled value for money in terms of cost versus performance.

Compared to the Superior and Silver Z-Caps (Super MKP / double metalized polypropylene foil) capacitors, the Alumen Z-Cap will bring less brightness and a little more natural top end balance to your system. Ideal for audio aficionados who prefer a slightly less bright system, while also hearing improvements in the overall naturalness/neutrality of the system as a whole. 3 / 6

• Ultra-thin dielectric insulation to eliminate memory effect in the capacitor

• An extremely fast-reacting capacitor

• Very low ESR, SEL, inductance, and dielectric absorption data

• High-quality pure aluminum foil wound with highly specialized machinery and precision winding techniques

• Specifically designed for the tweeter and mid-range section of passive crossovers

• Can also be used as coupling capacitors for transistor amplifiers

Non-polarized pure aluminum foil capacitor

Dielectric: Polypropylene film

Construction: Four-layer round tubular type axial leads

Winding: Aluminum foil spliced to the polypropylene insulation film

Rated Voltage: 100 VDC / 65 VAC

Test Voltage: 150% rated voltage

Electrodes: Pure copper foil

Contacts: Non-inductive zinc thermally sprayed extended film

Coating: Gray plastic tape wrapped black resin, sealed in an anodized aluminum tube

Leads: Tin plated oxygen-free pure copper

Capacitance Range: 100VDC from 1.0 μF to 10μF

Capacitance tolerance: ±3% (on nominal value)

Dielectric constant: Non-polar dielectric

Dissipation factor: Extremely low

Dielectric absorption factor: ＜0.5% @20℃ 5 / 6

Dielectric thickness: PB=4µm

Equivalent series resistance: Extremely low

Self-inductance: 0 nH

Insulation resistance: ＞100.000 MΩ@20℃

Temperature coefficient: -200℃x10-6/℃

Temperature Range: -55℃to +85℃

Metal layer thickness: PB=0.3µm

Metal layer conductivity: PB =1.2 Ω/cm2
