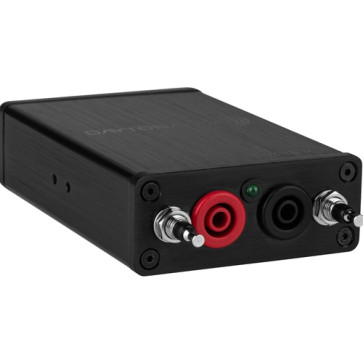

DATS V2 til elektro-akustisk måling

DATS V2 elektro-akustisk måling


Måling af thiele-small parametre på højttaler enheder


Måling af impedans på komplet højttaler byg


Måling af fase på komplet højttaler byg


Måling af spole, kondensator og modstand


Kun 1 tilbage på lageret

Lagerstatus: På lager

Pris: 1.495,00 DKK

Tilbud 1.345,50 DKK

Dayton

Gratis fragt ved køb over 800 kr, derunder kun 29 kr i fragt

Hurtig levering levering - 1-2 dages levering !

14 dages fuld returret

Pris Garanti

25 års erfaring og faguddannet rådgivning.

Ring 42 90 50 42 for mere info.

Køb dine højtaler med kort eller EANKøb med kort Betalt med mobile pay på dit næste højtaler køb

Beskrivelse
Detaljer

DATS V2 er super nem til at trække thiele-small parametre fra en højttaler enhed.

Den handy til at lave en måling af impedans forholdet i din højttaler, og dermed er det også en simpel opgave for DATS V2 at checke værdier på spoler, kondensatorer og modstande.

Product Description

Grab and go!

Any engineer knows that valid and accurate data is crucial to great results. DATS (Dayton Audio Test System) V2 is the essential tool in any speaker designer's or audio engineer's toolbox, providing accurate, precise measurement data for any audio transducer or loudspeaker system. Save yourself time, money, and trial-and-error frustration by using DATS V2 to measure loudspeaker drivers, crossover networks, and complete audio systems!

DATS V2 is a unique, multipurpose test system that works with your PC and full-featured test software to measure the impedance response of a speaker driver and derive a complete set of Thiele/Small parameters that describe its operation. It's as easy as connecting a driver and starting the test! The DATS V2 measurement module provides the electrical stimulus to the driver, measures the driver's impedance on the fly, and then creates a high-resolution graph (30,000 data points!) with no additional hardware required.

DATS V2 software is the true power of DATS. The included software not only measures impedance and parameters of speaker drivers with incredible accuracy, but it can also measure the true value of inductors, capacitors, and resistors, and it also works as a signal generator and scope to let you monitor small electrical signals (line-level only).

What's better about Version 2?

NEW in the DATS V2 software are the ability to measure Wright Parameters (Kr, Xr, Ki, and Xi) for precision speaker simulation, and the ability to display and print impedance data using a logarithmic scale. The precision of capacitor measurements also gets a boost from the newly added ability to measure ESR, dissipation factor, quality factor (Q), and loss angle (sigma), for complete characterization of passive components.

The new DATS V2 hardware eliminates warm-up and cool-down times, and is more stable than the original DATS, for uninterrupted measurements. It's also recognized instantly and configured correctly by your PC with no lengthy setup. DATS V2 also complements other, more expensive test gear by being easier to set up and use, and much more portable -- you can plug DATS right into a laptop! When used together with Dayton Audio OmniMic, you can take a fully-featured electro-acoustic lab anywhere you go.

DATS V2 provides the following unique advantages:
•Ultra-linear impedance response measurement for loudspeaker drivers and complete systems
•Accurate measurement of loudspeaker electromechanical parameters (Fs, Qts, Vas, and many more)
•Measurement of advanced Wright Model parameters (Kr, Xr, Ki, Xi) for precision simulations
•Precise, high-resolution impedance response measurements with 30,000 data points (1 Hz to 20,000 Hz)
•Save and compare up to 20 impedance graphs simultaneously within one test file
•Integrated quality control feature set provides pass/fail parameter measurement (QC Pack)
•Sensitive rub and buzz detection functionality reveals hidden flaws in individual drivers (QC Pack)
•Software signal generator with selectable waveform, frequency, and amplitude
•Generates sine, square, triangle, saw tooth, impulse, pink noise, and log sweeps
•Oscilloscope software mode with dual traces, plus adjustable time and amplitude scales
•Oscilloscope and generator modes are compatible with other audio interfaces
•Quality test interface hardware assembled using precision SMT components and automation
•High-quality alligator clip leads minimize contact resistance for improved consistency
•Includes method for calculating Vas from specified Mmd
•Faster-than-ever hardware startup time virtually eliminates warm-up/cool-down
•Software is compatible with Windows XP, Vista, 7, 8, or 10 with no added configuration needed

A solution like no other

DATS V2 is faster, more elegant, more versatile, and easier to use than any other tes t& measurement device. Get ready for your designs to make a quantum leap, thanks to better data!

DATS V2 software is backwards-compatible with the original DATS and WT3 hardware via a software setting. (Note: DATS V2 hardware is not backwards-compatible with DATS or WT3 software, due to an updated internal design).

Minimum System Requirements: IBM PC or compatible system with 64MB RAM; 500 MHz Pentium III processor; MS Windows XP, Vista, 7, 8, or 10; One available USB 2.0/1.1 port.

Yderligere information
Yderligere information
VarenummerPE-390-806
eanIkke tilgængelig
BrandDayton
