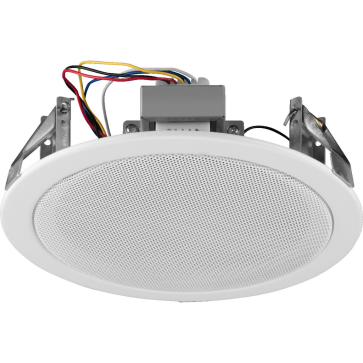

Indbygningshøjttaler 100V højttaler 10Wmax - EDL-16
- 100 V line technique
- 15 cm (6") full range speaker
- Metal housing with protective speaker grille
- Power taps: 10/6/3/1.5 W
- Quick-mounting facility with spring clips
- Connection via spring-loaded terminal
- For a ceiling thickness from 10 to 40 mm
På lager 3 - 6 dages levering
349,00 DKK
Detaljer
100V højttaler|PA ceiling speaker
- 100 V line technique
- 15 cm (6") full range speaker
- Metal housing with protective speaker grille
- Power taps: 10/6/3/1.5 W
- Quick-mounting facility with spring clips
- Connection via spring-loaded terminal
- For a ceiling thickness from 10 to 40 mm
| TEKNISKE DATA: | |
| Impedance (Z) | - |
| Transmission method | 100 V |
| Frequency range | 90-16,000 Hz |
| Resonant frequency (fs) | - |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating (RMS) | 10/6/3/1.5 W |
| Peak music power output (MAX) | - |
| Sensitivity | 92 dB/W/m |
| Max. rated SPL | 102 dB |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | - |
| Moving mass (Mms) | - |
| Mech. Q factor (Qms) | - |
| Electr. Q factor (Qes) | - |
| Total Q factor (Qts) | - |
| Equivalent volume (Vas) | - |
| DC resistance (Re) | - |
| Force factor (BxL) | - |
| Voice coil induct. (Le) | - |
| Voice coil diameter | - |
| Voice coil former | - |
| Linear excursion (XMAX) | - |
| Eff. cone area (Sd) | - |
| Magnet weight | - |
| Magnet diameter | - |
| Mounting cutout | Ø 166 mm |
| Mounting depth | 55 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |
| Dimensions | Ø 195 mm x 55 mm |
| Outside diameter | Ø 195 mm |
| Width | Ø 195 mm |
| Height | - |
| Depth | 55 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.8 kg |
| Packing unit | 1 |
| Type of speaker | 150 |
Yderligere information
| Varenummer | 163820 |
|---|---|
| Videoer | Nej |
| FAQ | Nej |
| Teknisk info & Data | Nej |
| Brand | Monacor |
