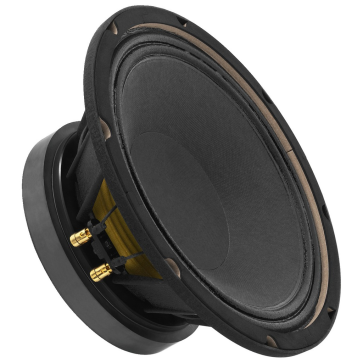

"SP-10/250PRO 10" Bas PA Højttaler - 250W 8 Ohm med god Bas"
SP-10/250PRO
10" Bas - mellemtone
Pap membran
Impedans 8 ohm
Egenresonans 47 Hz
Følsomhed 94 dB
Qts 0,33
På lager 3 - 6 dages levering
1.149,00 DKK
Detaljer
SP-8/150PRO and SP-10/250PROare PA speakers of long excursion and high power capability, with diecast aluminium basket, rear-ventilated centering spider and ventilated drive system for a high thermal stability. They feature ideal parameters for a very good bass reproduction in compact bass-reflex cabinets.
PA bass speaker, subwoofer, 500 WMAX, 250 WRMS, 8 Ω
- 25 cm (10") bass speaker and subwoofer of high power capability
- Heat-resistant voice coil and ventilated drive system
- Drive configuration of very long excursion for a deep bass reproduction of high volumes
- Progressive cone suspension for a high operating reliability
- Robust diecast aluminium basket
- Ideally suited for compact subwoofers and 2-way systems with a crossover frequency of approx. 1,500 Hz to the tweeter
HOBBY HiFi 03/2014
"A bass driver of particularly long excursion and high level stability for compact cabinets of about 35 litres (e.g. in the speaker building concept HiFi-PA 10/2). The HiFi-PA 10/2 impressed with a breathtaking power in the audio room. ... tremendous level reserves ... incredibly filigree."
HOBBY HiFi 02/2014
"A bass driver of particularly long excursion and high level stability for more compact reflex cabinets of about 35 to 40 litres."
Klang + Ton 03/2013
"Universal bass speaker for powerful applications. Skilfully selected TSP ensure high subwoofer levels from compact cabinets."
|"A bass driver of particularly long excursion and high level stability for compact cabinets of about 35 litres (e.g. in the speaker building concept HiFi-PA 10/2). The HiFi-PA 10/2 impressed with a breathtaking power in the audio room. ... tremendous level reserves ... incredibly filigree."
HOBBY HiFi 02/2014
"A bass driver of particularly long excursion and high level stability for more compact reflex cabinets of about 35 to 40 litres."
Klang + Ton 03/2013
"Universal bass speaker for powerful applications. Skilfully selected TSP ensure high subwoofer levels from compact cabinets."
| Impedance (Z) | 8 Ω |
| Resonant frequency (fs) | 47 Hz |
| Max. frequency range | f3-2,000 Hz |
| Music power | 500 WMAX |
| Power rating (P) | 250 WRMS |
| SPL (1 W/m) | 94 dB |
| Suspension compl. (Cms) | 0.20 mm/N |
| Moving mass (Mms) | 51 g |
| Mech. Q factor (Qms) | 6.16 |
| Electr. Q factor (Qes) | 0.35 |
| Total Q factor (Qts) | 0.33 |
| Equivalent volume (Vas) | 40.7 l |
| DC resistance (Re) | 7.1 Ω |
| Force factor (BxL) | 18.3 |
| Voice coil induct. (Le) | 0.83 mH |
| Voice coil diameter | Ø 75 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±7 mm |
| Eff. cone area (Sd) | 380 cm2 |
| Magnet weight | 2 kg |
| Weight | 5.2 kg |
Yderligere information
| Varenummer | 105590 |
|---|---|
| Videoer | Nej |
| FAQ | Nej |
| Teknisk info & Data | Nej |
| Brand | Monacor |
