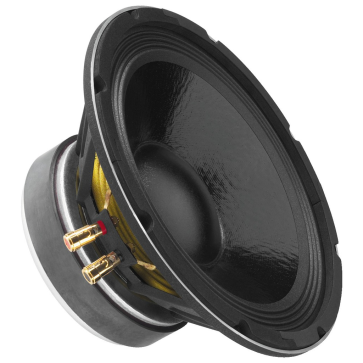

"IMG Stage Line SP-10A/302PA 10" Bas-Højttaler - 300W RMS, Vandafvisende"
SP-10A/302PA
10" Basenhed
Pap membran
Impedans 8 ohm
Egenresonans 50 Hz
Følsomhed 99 dB
Qts 0,34
På lager 3 - 6 dages levering
1.399,00 DKK
Detaljer
Professional Speakers from IMG Stage Line
Of very high power capability, high efficiency and with drive parameters which allow a reproduction of the complete bass range. These speakers guarantee excellent results as bass-midrange speakers in 2-way or multiway systems as well as subwoofers with the two larger models.
Of very high power capability, high efficiency and with drive parameters which allow a reproduction of the complete bass range. These speakers guarantee excellent results as bass-midrange speakers in 2-way or multiway systems as well as subwoofers with the two larger models.
Professional PA bass-midrange speaker, 600 WMAX, 300 WRMS, 8 Ω
|- Of very high power capability
- 25 cm (10") professional speaker of long excursion
- Diecast basket
- Cone with water-repellent coating
- Very neat workmanship with a facing basket front
- Wide frequency response of low distortion
- High efficiency
- Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
- For compact bass-reflex cabinets from 20 litres on already
- For all kinds of professional and semiprofessional PA applications
| Impedance (Z) | 8 Ω |
| Resonant frequency (fs) | 55 Hz |
| Max. frequency range | f3-3,500 Hz |
| Music power | 600 WMAX |
| Power rating (P) | 300 WRMS |
| SPL (1 W/m) | 98 dB |
| Suspension compl. (Cms) | 0.24 mm/N |
| Moving mass (Mms) | 35 g |
| Mech. Q factor (Qms) | 7.44 |
| Electr. Q factor (Qes) | 0.31 |
| Total Q factor (Qts) | 0.30 |
| Equivalent volume (Vas) | 40 l |
| DC resistance (Re) | 6.4 Ω |
| Force factor (BxL) | 15.82 Tm |
| Voice coil induct. (Le) | 0.65 mH |
| Voice coil diameter | 66 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±4 mm |
| Eff. cone area (Sd) | 346 cm2 |
| Magnet weight | 2 kg |
| Weight | 5 kg |
Yderligere information
| Varenummer | 104920 |
|---|---|
| Videoer | Nej |
| FAQ | Nej |
| Teknisk info & Data | Nej |
| Brand | Monacor |
