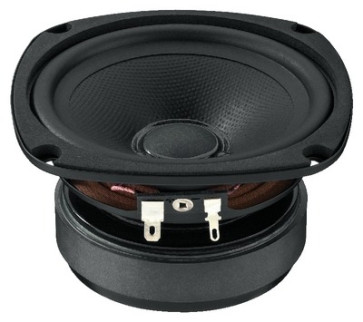

"4" IMG Stage Line SP-4/60PRO Mellemtone Højttaler, 60W, 8Ω"
SP-4/60PRO
4" mellemtone
Pap membran
Impedans 8 ohm
Egenresonans 92 Hz
Følsomhed 90 dB
Qts 0,6
Ikke på lager, forvent under 30 dags levering
219,00 DKK
Detaljer
PA midrange speaker, 60 WMAX, 30 WRMS, 8 Ω
PA midrange højttaler , 60 Wmax , 30 WRMS , 8 Ω • 10 cm (4 " ) PA midrange højttaler
• Mellemtone højtaler fra L -RAY / 1000
• Meget lineær og bredt frekvensområde
• Fremragende lyd og dynamiske egenskaber
• På grund af en stor lineær frekvens område til en midrange -system , er det muligt en meget lav delefrekvens på subwoofer -systemer
• velegnet Ideelt til små PA -systemer , kolonne højttalere og også som en hi- fi- midrange
HOBBY HiFi 01/2013
"Impressively low THD values for a crystal-clear reproduction of the midrange."
HiFi-Selbstbau 07/2012
"Attractive price, unobtrusive, yet very good. This perfectly describes the midrange speaker SP-4/60PRO from IMG Stage Line. You can often be more successful when using your head instead of excessive material, ... The staff from MONACOR know exactly why they accommodate two of the SP-4/60PRO in the PA combination L-RAY/1000. We have always been curious as to why they only used a 10 cm speaker - but now we know why: the speaker is capable of a powerful bass reproduction without any kind of hesitation. They have done EVERYTHING right."
"Impressively low THD values for a crystal-clear reproduction of the midrange."
HiFi-Selbstbau 07/2012
"Attractive price, unobtrusive, yet very good. This perfectly describes the midrange speaker SP-4/60PRO from IMG Stage Line. You can often be more successful when using your head instead of excessive material, ... The staff from MONACOR know exactly why they accommodate two of the SP-4/60PRO in the PA combination L-RAY/1000. We have always been curious as to why they only used a 10 cm speaker - but now we know why: the speaker is capable of a powerful bass reproduction without any kind of hesitation. They have done EVERYTHING right."
|
| Impedance (Z) | 8 Ω |
| Resonant frequency (fs) | 92 Hz |
| Max. frequency range | f3-10,000 Hz |
| Music power | 60 WMAX |
| Power rating (P) | 30 WRMS |
| SPL (1 W/m) | 90 dB |
| Suspension compl. (Cms) | 0.47 mm/N |
| Moving mass (Mms) | 6.3 g |
| Mech. Q factor (Qms) | 5.35 |
| Electr. Q factor (Qes) | 0.67 |
| Total Q factor (Qts) | 0.60 |
| Equivalent volume (Vas) | 3.04 l |
| DC resistance (Re) | 6.76 Ω |
| Force factor (BxL) | 5.85 Tm |
| Voice coil induct. (Le) | 0.3 mH |
| Voice coil diameter | 25 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 2.3 mm |
| Eff. cone area (Sd) | 68 cm2 |
| Magnet weight | - |
| Weight | 0.9 kg |
Yderligere information
| Varenummer | 101600 |
|---|---|
| Videoer | Nej |
| FAQ | Nej |
| Teknisk info & Data | Nej |
| Brand | Monacor |
