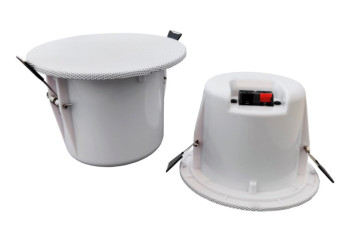

Earthquake ECS-4.0: Kompakt Indbygningshøjttaler til Alle Rum

Elegant kompakt indbygningshøjttaler sæt

Dette lille søde sæt indbygningshøjttaler er nemt at implementere og har en fantastisk behagelig lyd.

Med kun et hul 99mm i diameter og du blot tilkobler højttaler ledningerne i klemmeterminaler er den monteret.

Den spiller ikke bas og derfor skal understøttes af en subwoofer for at få en rummelig lyd, men i forbindelse med badeværelse og gang arealer kan det tit være fint med en behagelig ikke dominerende baggrundslyd og det er nok med dem uden subwoofer.

En god forstærker og bruge sammen med dem er Blue 2,1D  som har delefilter på sin højre og venstre kanal, og du kan evt bruge en SPE-82HQ højttaler til at tilkoble subwoofer udgangen. Med SPE-82HQ forbundet til subwoofer udgangen betyder det ikke ret meget hvor du placere den men skal blot give den en kasse på ca 25 liter bag den for at give den optimale bas.

Optimized for Dolby Atmos®

The ECS-4.0 is optimized for Dolby Atmos®. The accurate reproduction of Atmos® overhead code depends on isolating the room from compromising event placement with reflections. The highpass filtering insures that users will listen to the Atmos® code and not a diluted and altered room response.

Kitchens, Bathrooms & Outdoor

The self-enclosed and humidity resistant design allows the user to place this speaker in areas where humidity might be a concern. Enjoy audio from your bathroom, kitchen and outdoor spaces.

Single-Handed Mounting System

Spring-loaded and tool-less mounting clips make installation simple, secure and more efficient, so your job is done quicker.

 3” Mounting Depth

The small mounting depth requirement of the ECS gives users more mounting options for either in-ceiling or in-wall applications as well as covered outdoor environments.

Premium Neodymium Magnets

ECS-4.0 is equipped with the highest quality neodymium magnets on the market, making the speaker smaller yet more efficient than any other speaker magnet material.

Long Lasting Rubber Surround

The long lasting and sag-resistant rubber surround will ensure that the speaker performs exceptionally well through many years of use.

Thermally Conductive Cone

ECS-4.0 is manufactured with aluminum cones for added thermal stability with less distortion and can greatly withstand weathering in humid environments such as bathrooms and outdoor areas.

Edgeless Paintable Grille

The edgeless, slim and paintable grille on the ECS-4.0 allow the installer to further customize the speaker so that it can perfectly match the décor of any room.

Box dimensions

10.3 × 26.6 × 14.1 cm

Weight

1.4 kg

Specifikationer

Material

Magnet Material: Neodymium
Surround Material: Butyl Rubber

Power Handling

50 Watts Max

Frequency Response

80Hz – 10kHz

Nominal Impedance

8 ohm

Sensitivity

84 dB

Voice Coil

Voice Coil Diameter

1″ (25.2 mm)

Produkt Dimensioner

Cutout Diameter

3.89″ (99 mm)

Mounting Depth

2.95″ (75 mm)

Others

Grille Diameter

4.56″ (116 mm)

Full Range

4” (101.6 mm)

With limitless application and sound quality in mind, Earthquake Sound is proud to release the new ECS-4.0 Edgeless In-ceiling speaker. The very small footprint of this 4” full-range speaker was made for a variety of indoor as well as outdoor applications.

The self-enclosed design with humidity resistant components provide users with a broader range of installation options such as bathrooms, kitchens and outdoor living spaces are just a few examples. Installation is made painless from a tool-less mounting system that makes your install faster and more efficient by simply pushing the speaker into any 99mm diameter hole with a depth of 3 inches. The edgeless and paintable grille further enhances this speaker by allowing it to vanish and not interrupt the décor of the room.

The ECS-4.0 is built to perform and complement the space in which it is placed, allowing you to enjoy music and audio in your home or commercial space.
